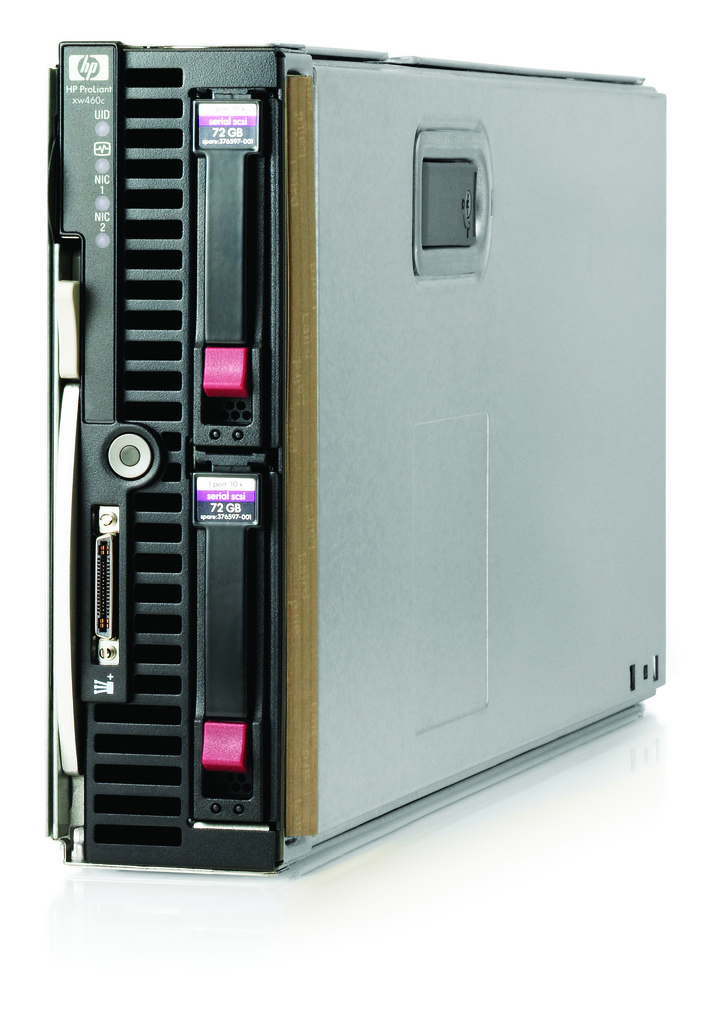

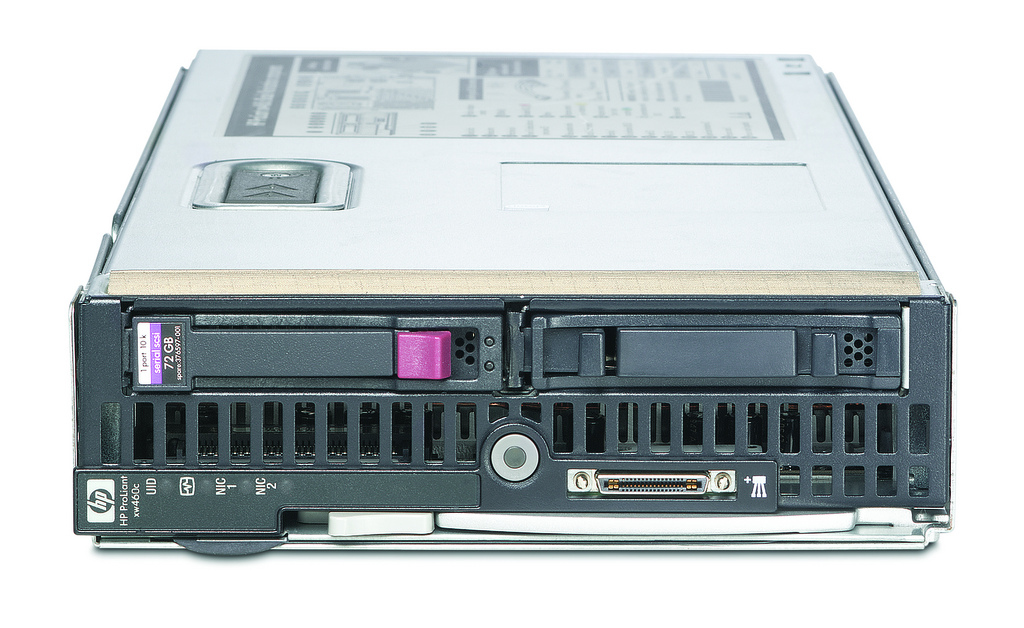

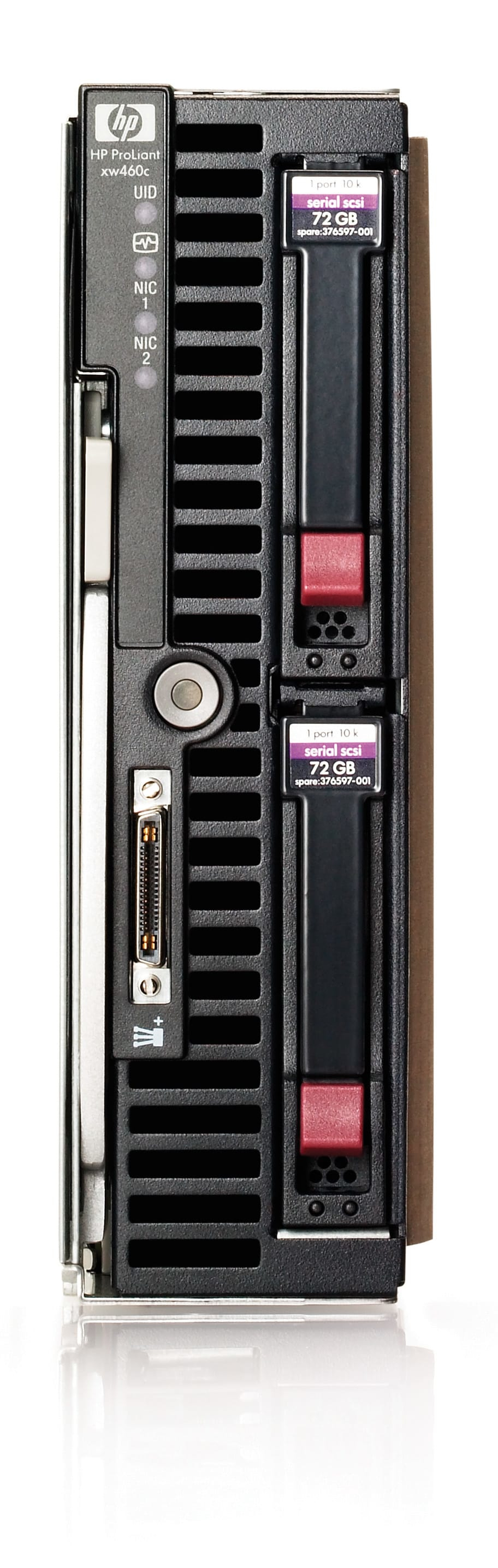

ProLiant xw460c Intel® Xeon® 5000 Sequence 5120
2 GB DDR2-SDRAM 72 GB HDD NVIDIA® Quadro® FX 540M Windows XP Professional Workstation Black, Grey
Model xw460cPart no. 467915-B21EAN 883585734351
100 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage72 GB
- GraphicsNVIDIA® Quadro® FX 540M
- TypeWorkstation
- OSWindows XP Professional
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 72 GB
- Graphics
- NVIDIA® Quadro® FX 540M
- Type
- Workstation
- OS
- Windows XP Professional
- Brand
- HP
- Category
- PCs/Workstations
- Model
- xw460c
- Part numbers
- 467915-B21, 440945-B21, 440940-B21, 442851-B21, 469061-B21
- EAN / UPC
- 883585734351, 808736818704, 808736818650, 808736897419 +1 more
- Also known as
- HP ProLiant xw460c Intel® Xeon® 5000 Sequence 5120 2 GB DDR2-SDRAM 72 GB HDD NVIDIA® Quadro® FX 540M Windows XP Professional Workstation Black, Grey
Specifications
100 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5120 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | Yes |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5100 Series |
| Processor codename | Woodcrest |
| Processor system type | DP |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 65 °C |
| Processor socket | LGA 771 (Socket J) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 72 GB |
| Storage media | HDD |
| Total HDDs capacity | 72 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 72 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® Quadro® FX 540M |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 5000P |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
Design
| Specification | Value |
|---|---|
| Placement supported | Horizontal/Vertical |
| Product colour | Black, Grey |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27215 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 510 mm |
| Height | 56 mm |
| Weight | 6.44 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
