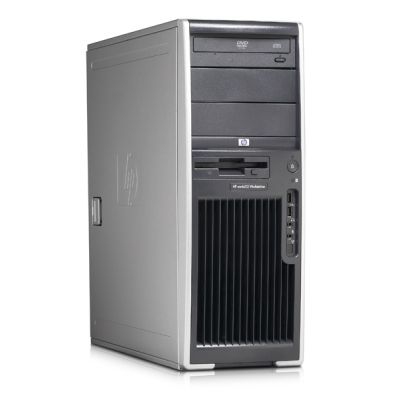

CD-RW WVST Bus Workstation

Model xw4600 Intel® Core™2 Duo E4500 2.20GHz 1GB/160GB NVIDIA NVS 290 DVD/CD-RW WVST Bus WorkstationPart no. PW433EA#ABH

59 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: xw4600 Intel® Core™2 Duo E4500 2.20GHz 1GB/160GB NVIDIA NVS 290 DVD/CD-RW WVST Bus Workstation
Part number: PW433EA#ABH
Also known as: HP xw4600 Intel® Core™2 Duo E4500 2.20GHz 1GB/160GB NVIDIA NVS 290 DVD/CD-RW WVST Bus Workstation DDR2-SDRAM Minitower

59 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Number of processors installed	1
Cache external	2048 KB

Specification	Value
Optical drive type	DVD-ROM
HDD capacity	160 GB
HDD interface	SATA
HDD speed	7200 RPM
Storage drive controller	SATA 3GB/s
Disk subsystem controller	Integrated 6 channel SATA 3 Gb/s NCQ controller with RAID capability, optional 4 channel SAS controller with RAID capability
Diskette drive	FDD 3.5'' 1.44MB
Storage drive type	160 GB

Specification	Value
Maximum graphics card memory	0.256 GB
Graphics card	Quadro NVS 290
Video card features	NVIDIA Quadro FX 370

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® X38 Express

Specification	Value
USB 2.0 ports quantity	9
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Front: headphone, microphone, 2 USB 2.0 and 1 optional IEEE 1394A; Rear: 7 USB 2.0, 1 external SATA, 1 standard serial port, 1 parallel port, 2 PS/2 keyboard and mouse, 1 RJ-45 to integrated Gigabit LAN, audio In, audio Out, microphone; 2 USB 2.0 (internal)

Specification	Value
Expansion slots	7 slots: 2 PCI Express (x16) Graphics slots, 1 PCI Express (x16 mechanically, x4 electrically), 1 PCI Express (x1) and 3 full-length legacy PCI slots

Specification	Value
Power requirements	475 watts wide-ranging, active Power Factor Correction, 80 Plus Efficient
Power supply	475 W

Specification	Value
Chassis type	Minitower
Country of origin	China

Specification	Value
Display included	No

Specification	Value
Audio system	High Definition Audio
Audio included	Integrated High Definition audio with Jack Retasking capability, optional PCI Sound Blaster X-Fi Xtreme Music

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	8 - 90%
Relative humidity	8 - 85%
Non-operating altitude	9100
Non-operating relative humidity (non-condensing)	8 - 90%

Specification	Value
Pointing device	HP USB optical scroll mouse
Keyboard type	HP USB standard keyboard

Specification	Value
Security management description	HP Solenoid Hood Lock/Sensor Kit, Kensington Security Cable & Lock

Specification	Value
Drive bays	3 external 5.25" bays and 1 external 3.5" bay for optional floppy drive 2 internal 3.5" bays
