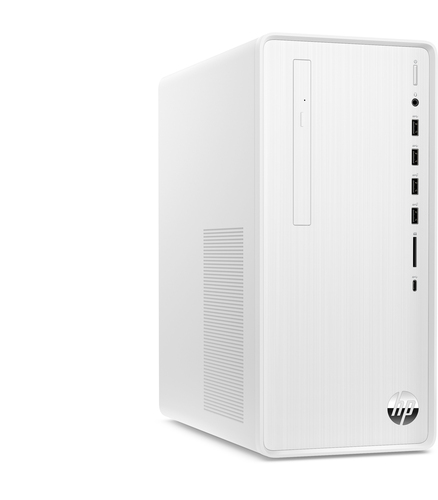

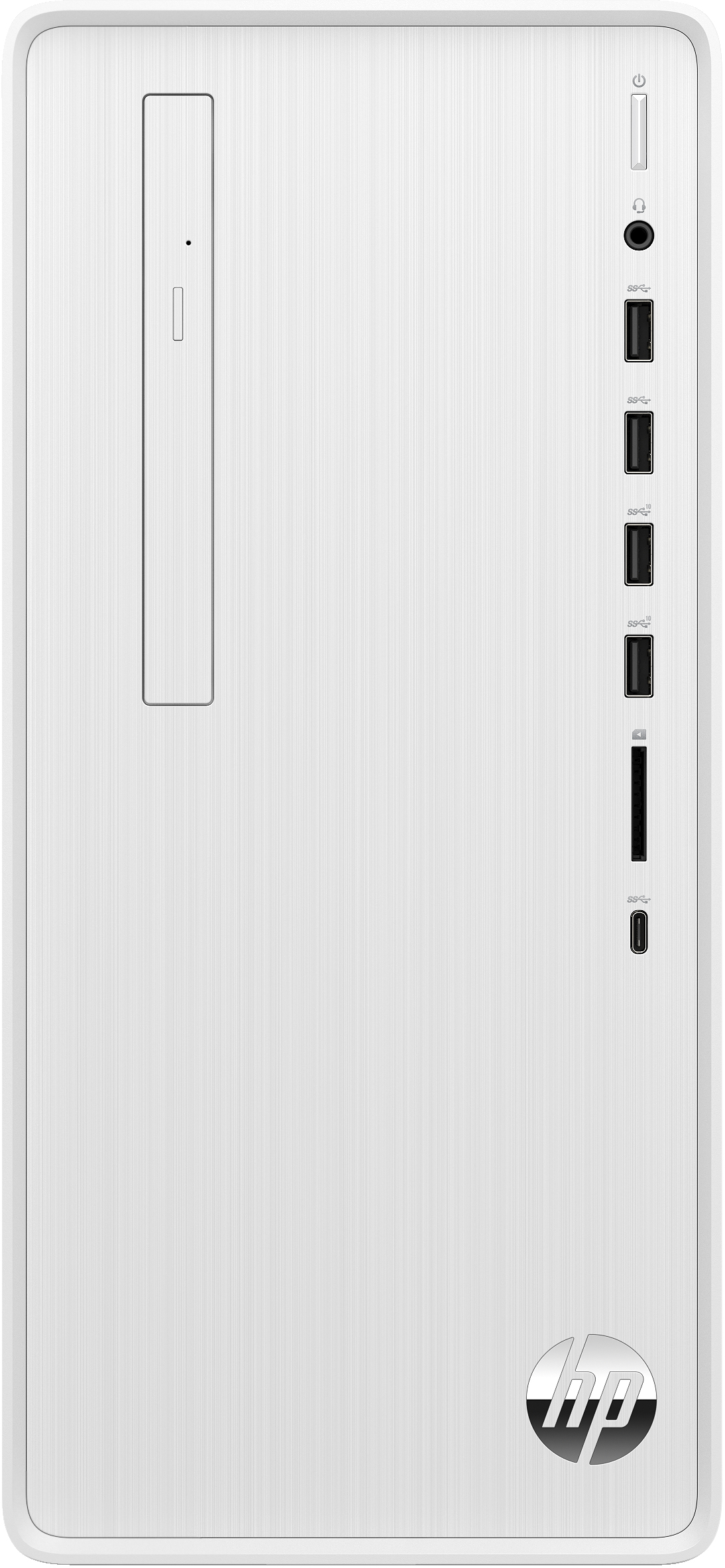

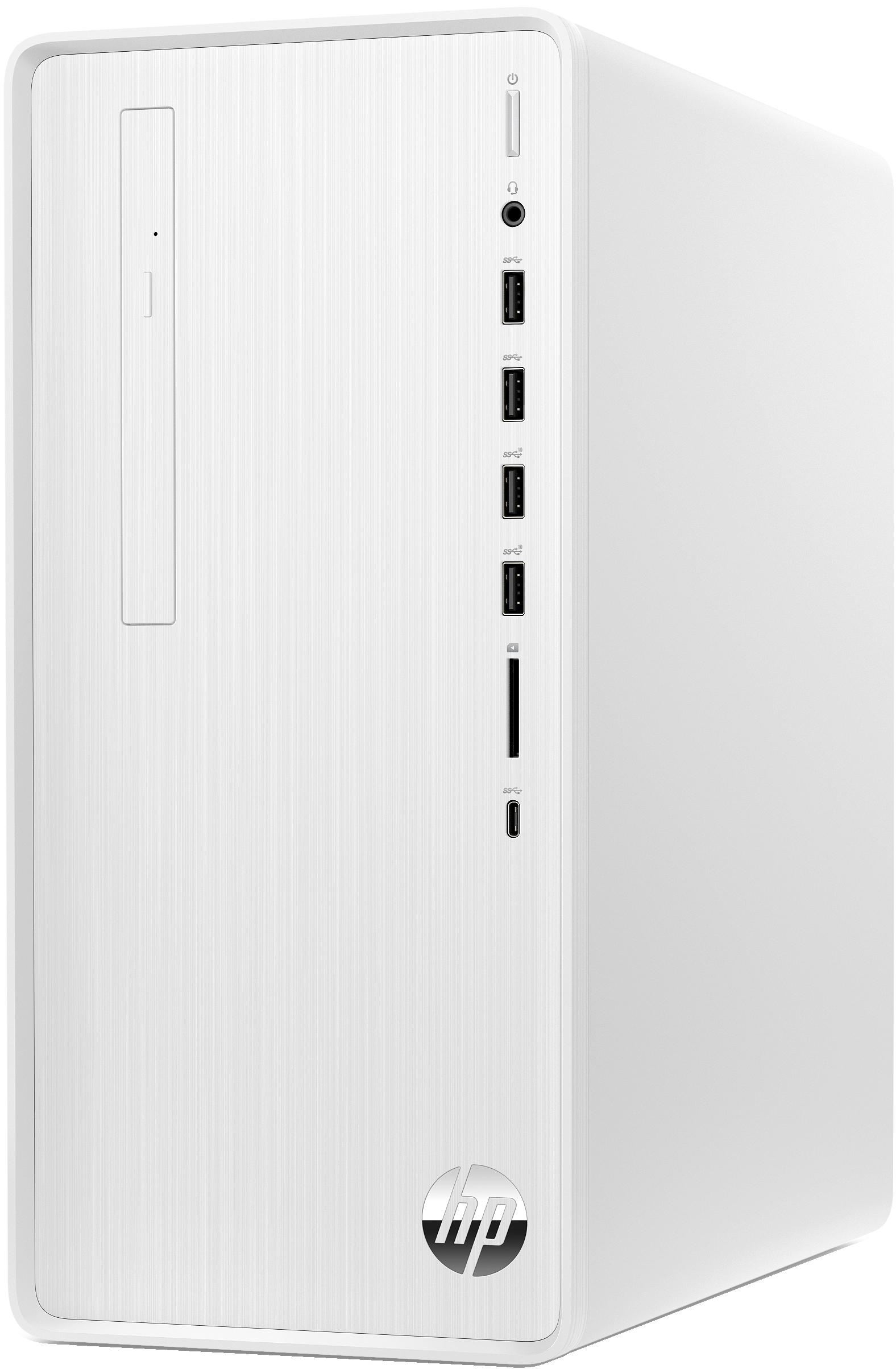

Pavilion TP01-5005na Intel® Core™ i7 i7-14700
16 GB DDR4-SDRAM 1 TB SSD Windows 11 Home Mini Tower PC
Model TP01-5005naPart no. A23XQEAEAN 198122915743
99 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1 TB
- SpeedWi-Fi 6 (802.11ax)
- TypePC
- OSWindows 11 Home
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1 TB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- OS
- Windows 11 Home
- Brand
- HP
- Category
- PCs/Workstations
- Model
- TP01-5005na
- Part number
- A23XQEA
- EAN / UPC
- 198122915743
- Also known as
- HP Pavilion TP01-5005na Intel® Core™ i7 i7-14700 16 GB DDR4-SDRAM 1 TB SSD Windows 11 Home Mini Tower PC
Specifications
99 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | L3 |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 3200 MHz |
| ECC | No |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Everyday |
| Motherboard chipset | Intel H670 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Realtek |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8852BE |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 310 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Snow white |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Introduction year | 2024 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Pre-installed software | Intel® Unison™, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; Xbox Game Pass 1-month free trial |
| Trial software | 25 GB Dropbox storage for 12 months |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Security tools | Kensington Security lock slot |
| HP Software provided | HP Connection Optimizer; HP Support Assistant; OMEN Gaming Hub; HP Enhanced Lighting; myHP |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 198122915743 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.4 mm |
| Depth | 304 mm |
| Height | 337.4 mm |
| Weight | 5.96 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 499 mm |
| Package depth | 400 mm |
| Package height | 287 mm |
| Package weight | 8.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainable technologies and materials | Water based paint |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8471500000 |
