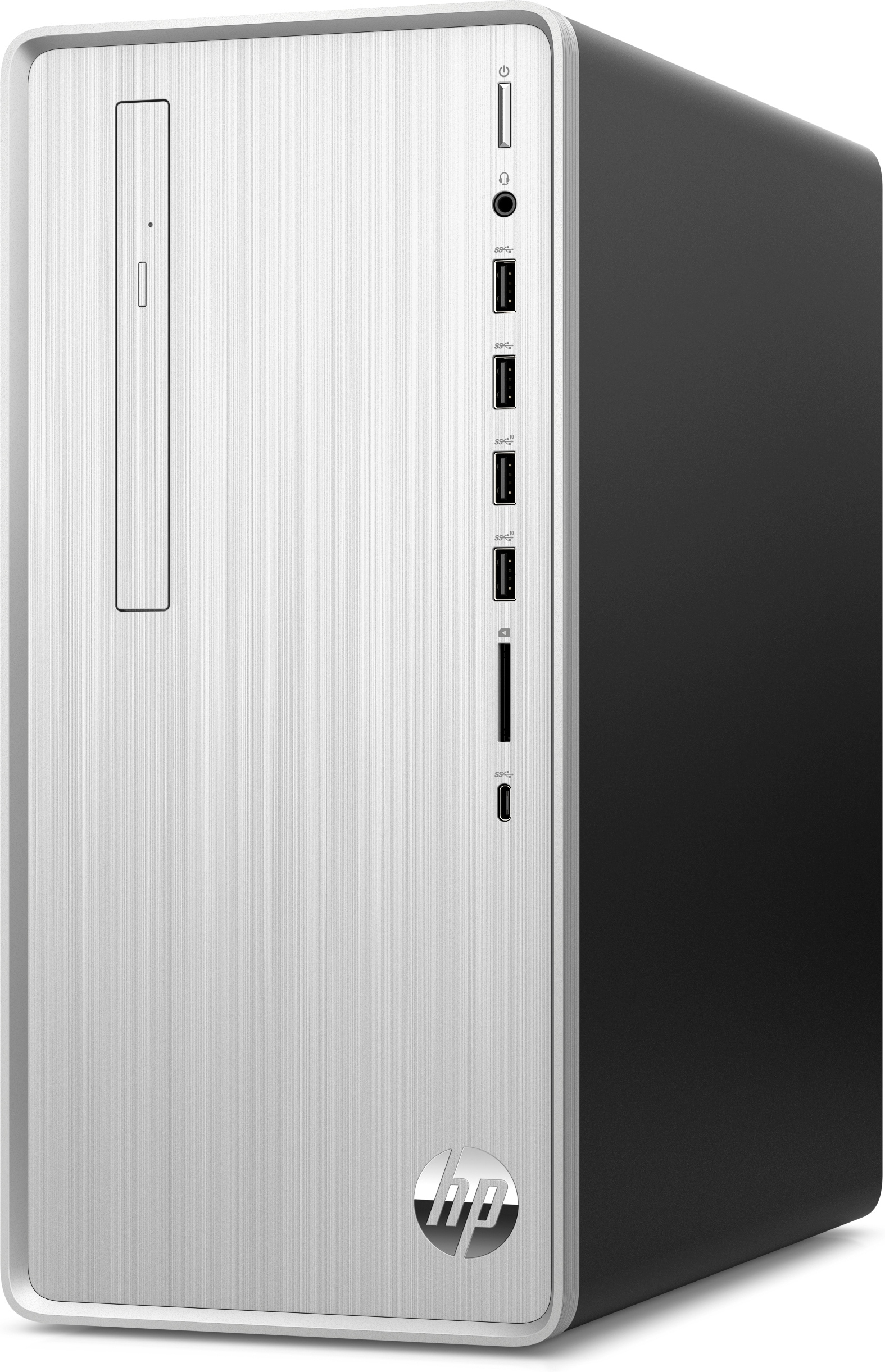

Pavilion TP01-0066 AMD Ryzen™ 7
3700X 8 GB DDR4-SDRAM 256 GB SSD AMD Radeon RX 550 Windows 10 Home Mini Tower PC Silver
Model TP01-0066Part no. 6YQ86AAREAN 194850079139
86 specifications
- ProcessorAMD Ryzen™ 7
- Memory8 GB
- Storage256 GB
- GraphicsAMD Radeon RX 550
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- AMD Radeon RX 550
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- TP01-0066
- Part number
- 6YQ86AAR
- EAN / UPC
- 194850079139
- Also known as
- HP Pavilion TP01-0066 AMD Ryzen™ 7 3700X 8 GB DDR4-SDRAM 256 GB SSD AMD Radeon RX 550 Windows 10 Home Mini Tower PC Silver
Specifications
86 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 3000 Series |
| Processor model | 3700X |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 32 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 65 W |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | AMD |
| Discrete graphics card model | AMD Radeon RX 550 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 5.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Realtek |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 310 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Product colour | Silver |
| Refurbished | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP JumpStart | Yes |
| HP Support Assistant | Yes |
| HP Software provided | HP Connection Optimizer |
| HP segment | Home |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.4 mm |
| Depth | 303 mm |
| Height | 337.4 mm |
| Weight | 5.95 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 499 mm |
| Package depth | 400 mm |
| Package height | 287 mm |
| Package weight | 8.21 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Bronze, ENERGY STAR |
