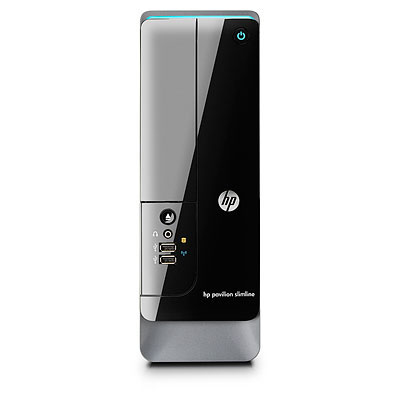

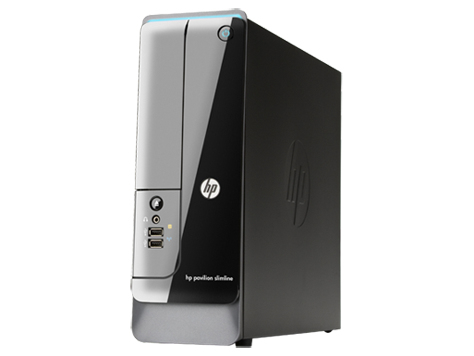

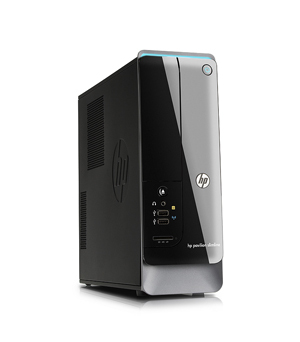

HP Pavilion s5-1204 Intel Pentium G G630

4 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium USFF PC Black

Model s5-1204Part no. QW793A

123 specifications

ProcessorIntel Pentium G
Memory4 GB
Storage1 TB
GraphicsNot available
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel Pentium G
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: Windows 7 Home Premium

Brand: HP
Category: PCs/Workstations
Model: s5-1204
Part number: QW793A
Also known as: HP Pavilion s5-1204 Intel Pentium G G630 4 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium USFF PC Black

Specifications

123 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	27
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MS PRO, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x1 (Gen 2.x) slots	3
PCI Express x16 (Gen 2.x) slots	1
Mini PCI Express slots	1

Power

Specification	Value
Power supply	220 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	USFF
Number of 5.25" bays	1
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Norton Internet Security 2012 60-day, Norton Online Backup 30-day
Bundled software	HP Magic Canvas 5.1 Cyberlink Power2Go Windows Media Center HP Games HP MovieStore powered by Roxio RaRa Music Microsoft Office Starter 2010 PDF Complete Microsoft Internet Explorer 9 Adobe Flash HP Linkup

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53483
Processor code	SR05S
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	100 mm
Depth	392 mm
Height	312 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
