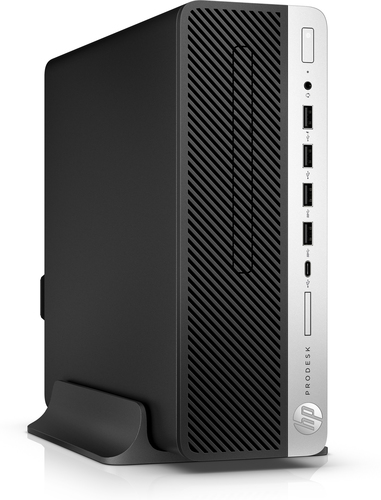

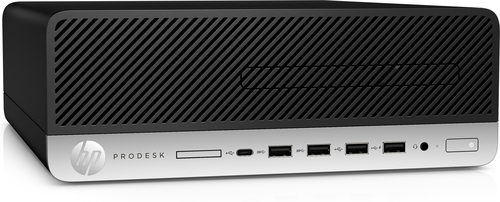

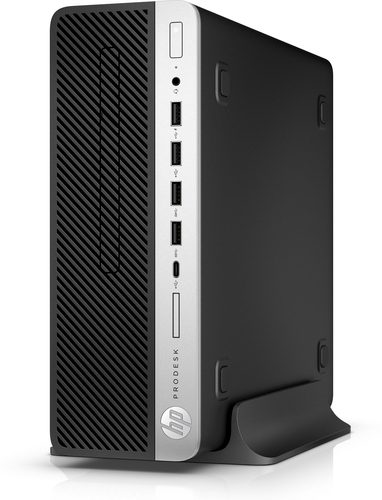

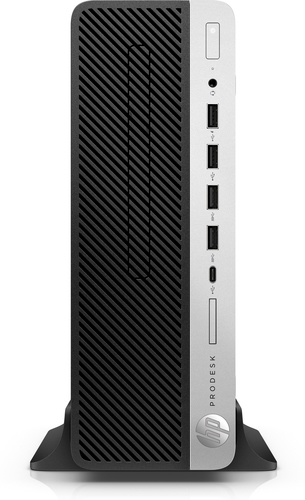

HP ProDesk 600 G4 Small Form Factor PC 4HM62EA

Model ProDesk 600 G4 Small Form Factor PC 4HM62EAPart no. 4HM62EAEAN 193015053533

133 specifications

ProcessorIntel® Core™ i7
Memory16 GB
Storage256 GB
GraphicsNot available
TypePC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 256 GB
Graphics: Not available
Type: PC
OS: Windows 10 Pro

Brand: HP
Category: PCs/Workstations
Model: ProDesk 600 G4 Small Form Factor PC 4HM62EA
Part number: 4HM62EA
EAN / UPC: 193015053533, 193015331075, 193015639331
Also known as: HP ProDesk 600 G4 Small Form Factor PC 4HM62EA Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF Black, Silver

Specifications

133 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8700
Processor cores	6
Processor threads	12
Processor boost frequency	4.6 GHz
Processor frequency	3.2 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-8700 Desktop Series
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor socket	LGA 1151 (Socket H4)
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	4x DIMM
Memory clock speed	2666 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	NVMe 3.0, PCI Express

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E92
On-board graphics card OpenGL version	4.5
Number of execution units	24

Performance

Specification	Value
Product type	PC
Market positioning	Business
Motherboard chipset	Intel Q370

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

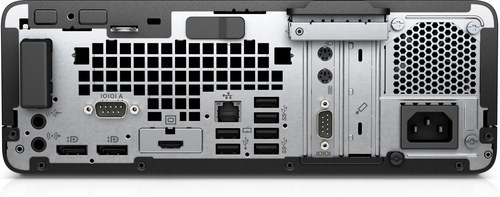

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No

Expansion slots

Specification	Value
PCI Express x16 slots	2

Power

Specification	Value
Power supply	180 W

Design

Specification	Value
Chassis type	SFF
Product colour	Black, Silver
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	126686
Processor code	SR3QS
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Brand-specific features

Specification	Value
HP JumpStart	Yes
HP ePrint	Yes
HP Recovery Manager	Yes
HP Support Assistant	Yes
HP Security tools	HP Secure Erase
HP Management tools	HP Hotkey Support, Noise Cancellation, HP PhoneWise, HP Sure Click, HP Velocity, HP WorkWise
HP segment	Business

Weight & dimensions

Specification	Value
Width	95 mm
Depth	270 mm
Height	296 mm
Weight	4.54 kg

Packaging content

Specification	Value
Keyboard included	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
