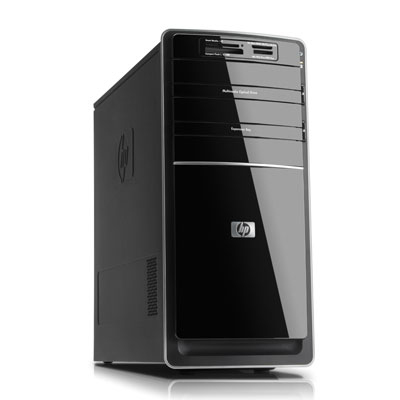

Pavilion p6780uk Intel® Pentium® D 830
4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® G405 Windows 7 Home Premium Micro Tower PC Black
Model p6780ukPart no. XS742EAEAN 886111247851
119 specifications
- ProcessorIntel® Pentium® D
- Memory4 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® G405
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel® Pentium® D
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® G405
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- HP
- Category
- PCs/Workstations
- Model
- p6780uk
- Part number
- XS742EA
- EAN / UPC
- 886111247851
- Also known as
- HP Pavilion p6780uk Intel® Pentium® D 830 4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® G405 Windows 7 Home Premium Micro Tower PC Black
Specifications
119 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® D |
| Processor model | 830 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| L2 cache | 2 MB |
| Processor cache | 6 MB |
| L3 cache | 6 MB |
| Processor cache type | L3 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium D 800 Series |
| Processor codename | Smithfield |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 69.8 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 230 M |
| Processing Die size | 206 mm² |
| CPU multiplier (bus/core ratio) | 15 |
| Processor core voltage (AC) | 1.25 - 1.40 V |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | Blu-Ray DVD Combo |
| Storage media | HDD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® G405 |
| Discrete graphics card memory | 1 GB |
| Graphics card family | NVIDIA |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 760G |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | Yes |
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| S/PDIF out port | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Number of 5.25" bays | 2 |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Trial software | Symantec Norton Internet Security 2010, Norton Online Backup |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 27513 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 414 mm |
| Height | 387 mm |
| Weight | 9.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Remote control included | Yes |
Features
| Specification | Value |
|---|---|
| TV tuner type | DVB-T |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | Yes |
