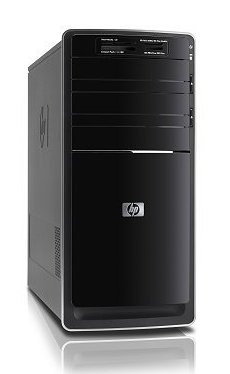

HP Pavilion p6744de Intel® Core™ i7 i7-870

8 GB DDR3-SDRAM 2 TB NVIDIA® GeForce® GT 440 Windows 7 Home Premium Midi Tower PC Black

Model p6744dePart no. P6744DE

131 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage2 TB
GraphicsNVIDIA® GeForce® GT 440
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 2 TB
Graphics: NVIDIA® GeForce® GT 440
Type: PC
OS: Windows 7 Home Premium

Brand: HP
Category: PCs/Workstations
Model: p6744de
Part number: P6744DE
Also known as: HP Pavilion p6744de Intel® Core™ i7 i7-870 8 GB DDR3-SDRAM 2 TB NVIDIA® GeForce® GT 440 Windows 7 Home Premium Midi Tower PC Black

Specifications

131 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-870
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.93 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	22
Stepping	B1
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD Super Multi
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	CF, Memory Stick (MS), miniSDHC, MMC, MS Duo, MS PRO, MS PRO Duo, SD, xD

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 440
Discrete graphics card memory	3 GB
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H57
Audio output channels	5.1 channels

Optical drive

Specification	Value
LightScribe	Yes
CD read speed	40x
CD write speed	40x
CD rewrite speed	32x

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	1
S/PDIF out port	Yes
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	3
PCI Express x16 slots	1

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Midi Tower
Number of 5.25" bays	2
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	41315
Processor code	SLBJG
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	ALC888S

Weight & dimensions

Specification	Value
Width	175 mm
Depth	414 mm
Height	387 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	Yes

Features

Specification	Value
TV tuner type	DVB-T

Other features

Specification	Value
TV tuner integrated	Yes
