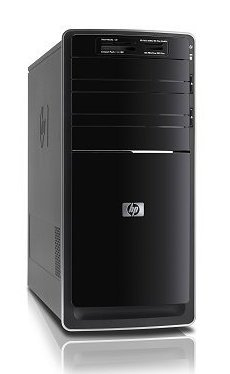

HP Pavilion p6620f Intel® Pentium® D 820

6 GB DDR3-SDRAM 1 TB Windows 7 Home Premium PC Black

Model p6620fPart no. BM419AA

126 specifications

ProcessorIntel® Pentium® D
Memory6 GB
Storage1 TB
SpeedWi-Fi 4 (802.11n)
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Pentium® D
Memory: 6 GB
Storage: 1 TB
Speed: Wi-Fi 4 (802.11n)
Type: PC
OS: Windows 7 Home Premium

Brand: HP
Category: PCs/Workstations
Model: p6620f
Part number: BM419AA
Also known as: HP Pavilion p6620f Intel® Pentium® D 820 6 GB DDR3-SDRAM 1 TB Windows 7 Home Premium PC Black

Specifications

126 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® D
Processor model	820
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	90 nm
Processor operating modes	64-bit
Processor series	Intel Pentium D 800 Series
Processor codename	Smithfield
Thermal Design Power (TDP)	95 W
Tcase	64.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	230 M
Processing Die size	206 mm²
CPU multiplier (bus/core ratio)	14
Processor core voltage (AC)	1.25 - 1.40 V
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	4x DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	CF, Memory Stick (MS), miniSD, MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SmartMedia, xD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	AMD Radeon HD 4000
On-board graphics card model	AMD Radeon HD 4200
Graphics card family	AMD

Performance

Specification	Value
Product type	PC
Motherboard chipset	AMD 785G
Motherboard form factor	micro ATX
Compatible processor series	Athlon II X4

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Networking features	Fast Ethernet
Wireless technology	Wi-Fi

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
S/PDIF out port	Yes
Serial ports quantity	0
Parallel ports quantity	0
Headphone connectivity	3.5 mm

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	3
PCI Express x16 slots	1
Mini PCI Express slots	1

Power

Specification	Value
Power supply type	AC
Power supply	250 W

Design

Specification	Value
Number of 5.25" bays	2
Product colour	Black
Case colour	Black
External drive bays	2
Internal drive bays	3
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27512
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	175 mm
Depth	414 mm
Height	387 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u
