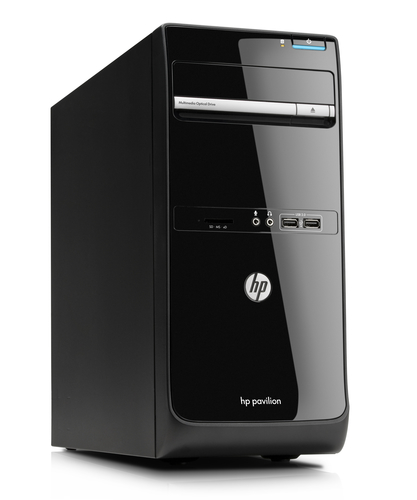

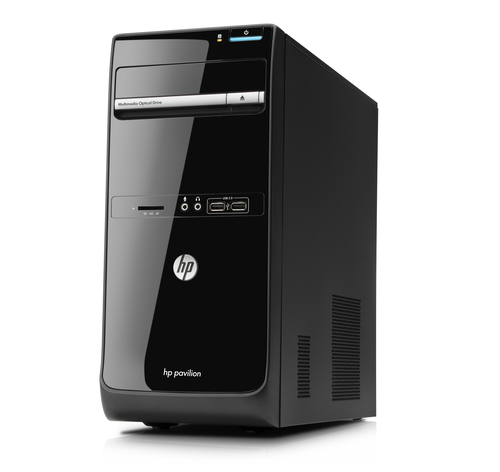

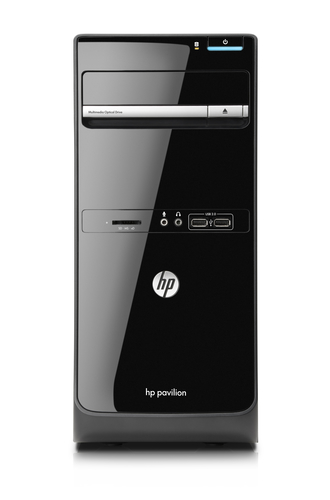

Pavilion p6-2044de Intel® Core™ i5 i5-2500

8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 545 Windows 7 Home Premium Mini Tower PC Black

Model p6-2044dePart no. H0D70EAEAN 886112309176

134 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: p6-2044de
Part number: H0D70EA
EAN / UPC: 886112309176
Also known as: HP Pavilion p6-2044de Intel® Core™ i5 i5-2500 8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 545 Windows 7 Home Premium Mini Tower PC Black

134 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2500
Processor cores	4
Processor threads	4
Processor boost frequency	3.7 GHz
Processor frequency	3.3 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	95 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Stepping	D2
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	2 TB
Optical drive type	Blu-Ray ROM
Storage media	HDD
Number of storage drives installed	1
Total HDDs capacity	2 TB
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	MS Duo, MS PRO, MS PRO Duo, MicroSD (TransFlash), MiniSD, SD, SDHC, SDXC

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 545
Discrete graphics card memory	3 GB
Number of discrete graphics cards	1
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Motherboard form factor	micro ATX
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Audio output channels	5.1 channels

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes

Specification	Value
Power supply	300 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52209
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
