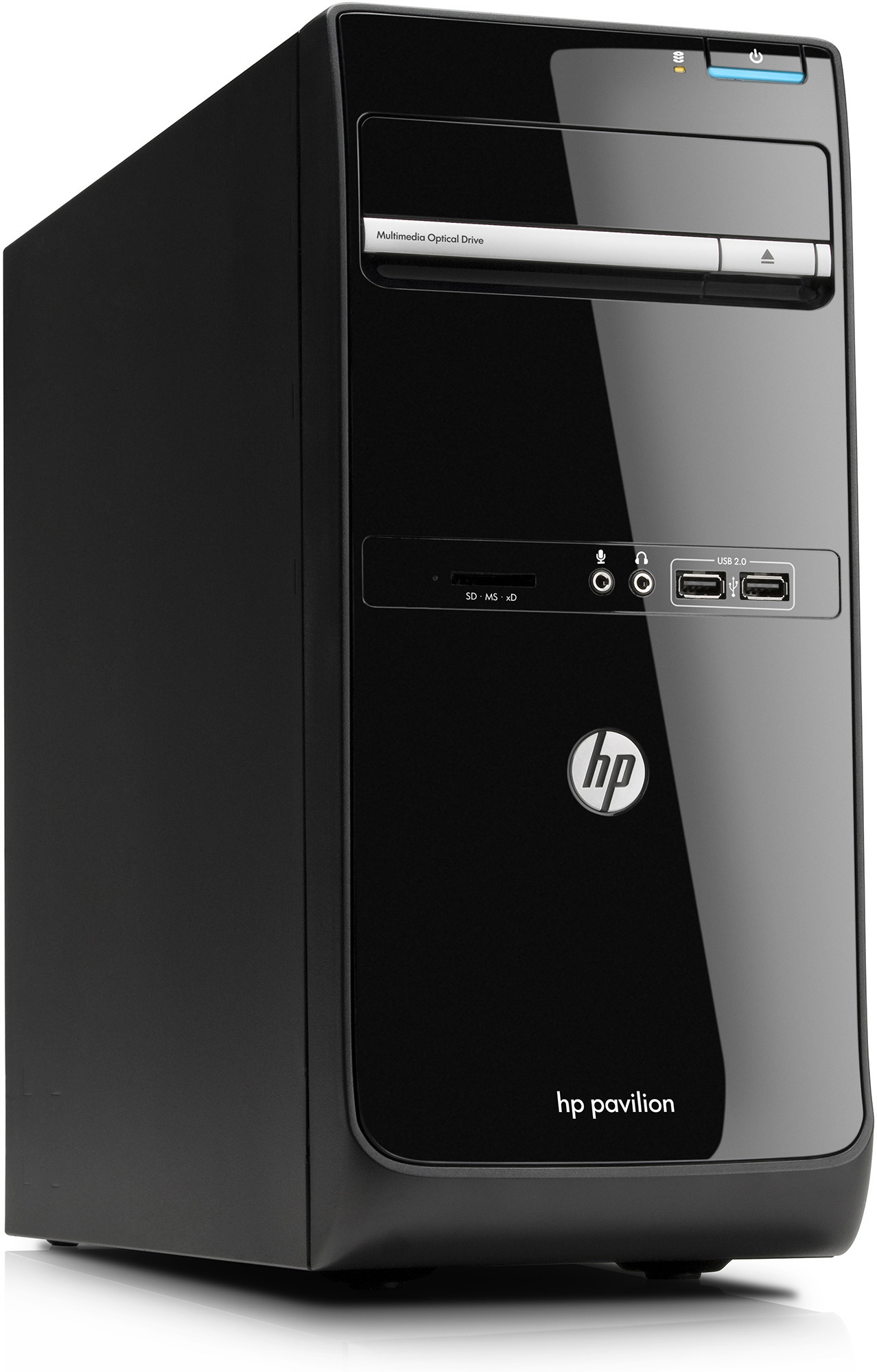

Pavilion p6-2010be Intel® Core™ i5 i5-2320

4 GB DDR3-SDRAM 1 TB AMD Radeon HD 6450 Windows 7 Home Premium Midi Tower PC Black, Silver

Model p6-2010bePart no. H0K18EAEAN 886112438319

124 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: p6-2010be
Part number: H0K18EA
EAN / UPC: 886112438319
Also known as: HP Pavilion p6-2010be Intel® Core™ i5 i5-2320 4 GB DDR3-SDRAM 1 TB AMD Radeon HD 6450 Windows 7 Home Premium Midi Tower PC Black, Silver

124 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2320
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	95 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	30
Stepping	D2
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMC+, MS PRO, SD, SDHC, xD

Specification	Value
On-board graphics card	No
Discrete graphics card model	AMD Radeon HD 6450
Discrete graphics card memory	1 GB
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Graphics card family	AMD

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Specification	Value
Power supply	300 W
Power supply input voltage	100 - 240 V

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53446
Processor code	SR02L
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
