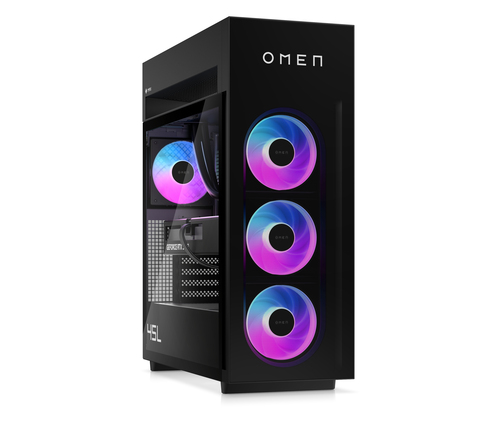

OMEN MAX 45L GT23-0403na PC
Model OMEN MAX 45L GT23-0403na PCPart no. D18H6EAEAN 199896117029
110 specifications
- ProcessorAMD Ryzen™ 9
- Memory64 GB
- Storage4 TB
- GraphicsNVIDIA GeForce RTX 5080
- SpeedWi-Fi 7 (802.11be)
- TypePC
Overview
- Processor
- AMD Ryzen™ 9
- Memory
- 64 GB
- Storage
- 4 TB
- Graphics
- NVIDIA GeForce RTX 5080
- Speed
- Wi-Fi 7 (802.11be)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- OMEN MAX 45L GT23-0403na PC
- Part number
- D18H6EA
- EAN / UPC
- 199896117029
- Also known as
- HP OMEN MAX 45L GT23-0403na PC AMD Ryzen™ 9 9900X3D 64 GB DDR5-SDRAM 4 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home Tower Liquid cooling system Black
Specifications
110 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 9 |
| Processor generation | AMD Ryzen 9000 Series |
| Processor model | 9900X3D |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor boost frequency | 5.5 GHz |
| Processor frequency | 4.4 GHz |
| Processor cache | 128 MB |
| Processor cache type | L3 |
| Processor socket | Socket AM5 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 6000 MHz |
| Memory data transfer rate | 6000 MT/s |
| Non-ECC | Yes |
| Internal memory manufacturer | Kingston |
| Memory module type | UDIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 2 |
| Total SSDs capacity | 4 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 2 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard form factor | micro ATX |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | MediaTek |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Shadow black |
| Cable lock slot | Yes |
| Liquid cooling system | Yes |
| Product colour | Black |
| RGB memory lighting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Trial software | 100 GB Dropbox storage for 3 months |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Security tools | Chassis side cover lock |
| HP Software provided | HP Connection Optimizer; HP Support Assistant; OMEN Gaming Hub |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 199896117029 |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS:X Ultra |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 470 mm |
| Height | 555 mm |
| Weight | 22.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 592 mm |
| Package depth | 328 mm |
| Package height | 672 mm |
| Package weight | 25.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold |
| Sustainable technologies and materials | Water based paint; At least 10% recycled metal; LDPE bag contains 30% recycled plastic; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; At least 20% post-consumer recycled plastic |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 3.1 |
| Carbon emissions, logistics (kg of CO2e) | 4.09 |
| Carbon emissions, manufacturing (kg of CO2e) | 687.42 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 101.78 |
| Total carbon footprint (kg of CO2e) | 796.39 |
Supplier features
| Specification | Value |
|---|---|
| Manufacturer warranty | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43211507 |
