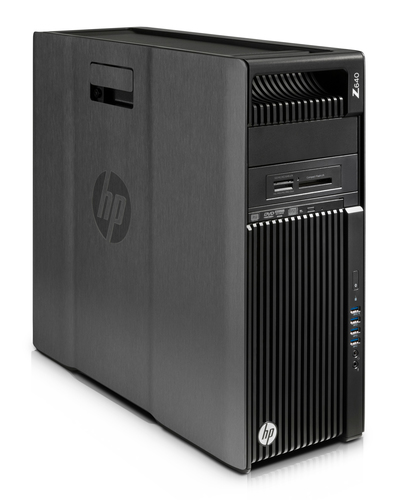

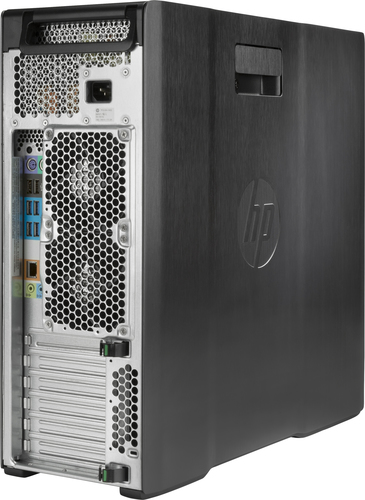

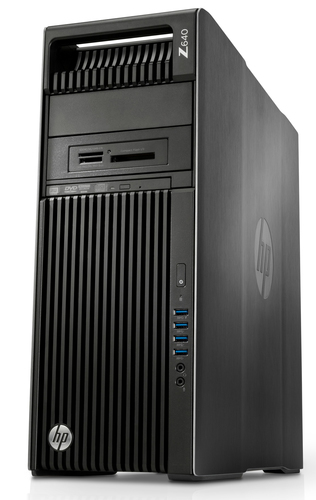

HP Estación de trabajo Z640

Model Estación de trabajo Z640Part no. 1KN51ECEAN 190781706892

112 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Estación de trabajo Z640
Part numbers: 1KN51EC, L8W29UC, X8X96UC, L9J58UP, V7A49UC
EAN / UPC: 190781706892
Also known as: HP Estación de trabajo Z640 Intel® Xeon® E5 v4 E5-2620V4 16 GB DDR4-SDRAM 500 GB HDD NVIDIA® Quadro® K620 Windows 10 Pro Tower Workstation Black

112 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2620V4
Processor cores	8
Processor threads	16
Processor boost frequency	3 GHz
Processor frequency	2.1 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	2
Processor socket	LGA 2011-v3
Stepping	R0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	68.3 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Number of SSDs installed	0

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® K620
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR3
Number of discrete graphics cards	1

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Specification	Value
Power supply	925 W

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	92986
Processor code	SR2R6
Processor package size	45 x 52.5 mm
Scalability	2S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Conflict-Free processor	Yes
