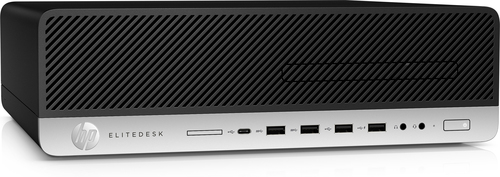

HP Equipo de factor de forma reducido EliteDesk 800 G3

Model Equipo de factor de forma reducido EliteDesk 800 G3Part no. 2EK15UCEAN 190781459675

145 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage1.25 TB
GraphicsNot available
TypePC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1.25 TB
Graphics: Not available
Type: PC
OS: Windows 10 Pro

Brand: HP
Category: PCs/Workstations
Model: Equipo de factor de forma reducido EliteDesk 800 G3
Part numbers: 2EK15UC, 1VR92UC, 1FU43AW, 1LT34UP, 4DP66UP, 3EL66EP +19 more
EAN / UPC: 190781459675, 190781459682, 190781459699, 190781459705 +20 more
Also known as: HP EliteDesk Equipo de factor de forma reducido 800 G3 Intel® Core™ i5 i5-7500 8 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Pro SFF PC Black, Silver

Specifications

145 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7500
Processor cores	4
Processor threads	4
Processor boost frequency	3.8 GHz
Processor frequency	3.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-7500 Desktop Series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Memory clock speed	2400 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1.25 TB
Optical drive type	DVD±RW
Storage media	HDD+SSD
Number of storage drives installed	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	5912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q270

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	2
PCI Express x16 slots	2

Power

Specification	Value
Power supply	180 W

Design

Specification	Value
Chassis type	SFF
Number of 2.5" bays	1
Product colour	Black, Silver
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97123
Processor code	SR335
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Brand-specific features

Specification	Value
HP ePrint	Yes
HP Support Assistant	Yes
HP Management tools	HP Client Catalog; HP Driver Packs; HP SoftPaq Download Manager (SDM); HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Image Assistant; HP MIK for Microsoft SCCM
HP Software provided	HP BIOSphere with Sure Start G3
HP segment	Business

Audio

Specification	Value
Audio chip	Realtek ALC221

Weight & dimensions

Specification	Value
Width	100 mm
Depth	338 mm
Height	308 mm
Weight	5.31 kg

Packaging data

Specification	Value
Package width	3990 mm
Package depth	4990 mm
Package height	2300 mm
Package weight	9 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Intel segment tagging	Enterprise
