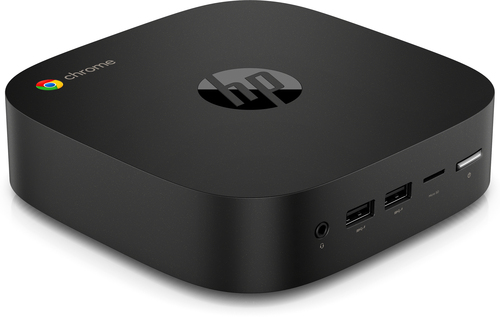

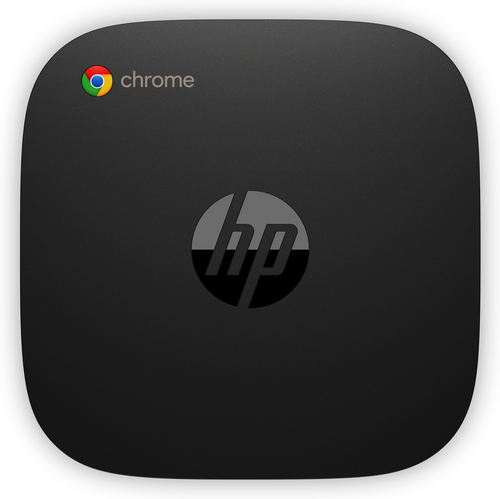

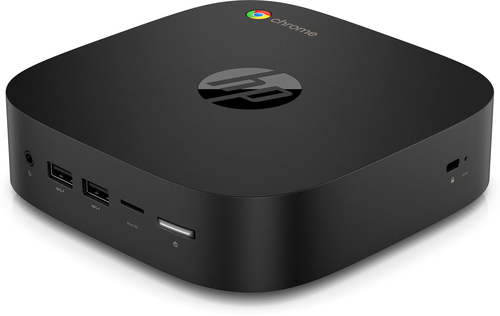

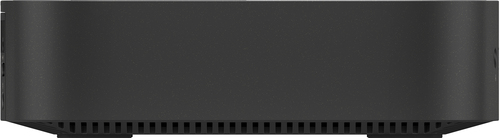

Enterprise G3
Model Enterprise G3Part no. 305R5EA#ABHEAN 195161311963
94 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage32 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 32 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Enterprise G3
- Part numbers
- 305R5EA#ABH, 2E6H9AW#ABB, 2E6H9AW#ABH, 305R2EA#UUG, 2E6H9AW, 305R3EA +7 more
- EAN / UPC
- 195161311963, 195161311796, 195161311802, 195161311819 +56 more
- Also known as
- HP Chromebox Enterprise G3 Intel® Celeron® 5205U 4 GB DDR4-SDRAM 32 GB eMMC ChromeOS Mini PC Black
Specifications
94 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 5205U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.9 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
| Non-ECC | Yes |
| Number of free internal memory expansion slots | 1 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Storage media | eMMC |
| Number of storage drives installed | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Everyday |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

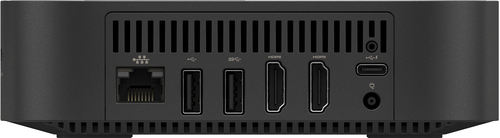

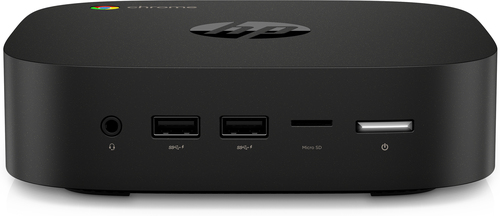

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Sparkling black |

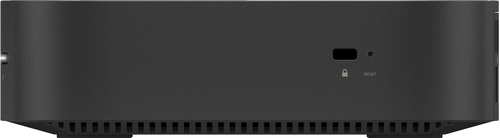

| Cable lock slot | Yes |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | No |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Security tools | Standard lock slot |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 195161312069 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC5662-CG |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149.3 mm |
| Depth | 149.3 mm |
| Height | 40 mm |
| Weight | 590 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 190 mm |
| Package height | 110 mm |
| Package weight | 790 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Low halogen | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainable technologies and materials | Low halogen |
| Sustainability compliance | Yes |
