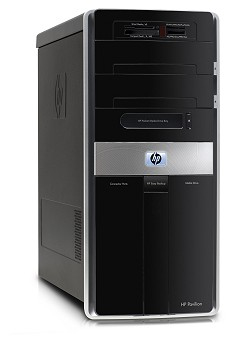

HP Elite m9170.fr

Model Elite m9170.frPart no. KB022AAEAN 883585583966

111 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Elite m9170.fr
Part number: KB022AA
EAN / UPC: 883585583966
Also known as: HP Pavilion Elite m9170.fr Intel® Core™2 Quad Q6600 4 GB DDR2-SDRAM 1 TB HDD NVIDIA® GeForce® 8600 GT Windows Vista Home Premium Midi Tower PC Black, Silver

111 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q6600
Processor cores	4
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	8 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q6000 Series
Processor codename	Kentsfield
Thermal Design Power (TDP)	95, 105
Tcase	B3=62.2; G0=71
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
CPU multiplier (bus/core ratio)	9
Processor core voltage (AC)	0.85 - 1.5 V
Stepping	G0
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD-ROM
Storage media	HDD
Number of HDDs installed	2
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Number of SSDs installed	0
Card reader integrated	Yes
Compatible memory cards	CF, CF+, Memory Stick (MS), MicroDrive, miniSD, MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SmartMedia, xD

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 8600 GT
Discrete graphics card memory	0.512 GB
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 3100

Specification	Value
Product type	PC
Motherboard chipset	Intel® G33

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2
S/PDIF out port	Yes

Specification	Value
Power supply	300 W

Specification	Value
Operating system installed	Windows Vista Home Premium
Operating system architecture	32-bit

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29765
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
