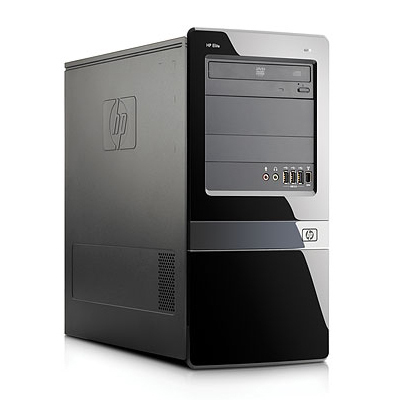

HP Elite 7100

Model Elite 7100Part no. XP110ES

136 specifications

ProcessorIntel® Pentium®
Memory2 GB
Storage320 GB
GraphicsIntel® GMA HD
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA HD
Type: PC
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Elite 7100
Part numbers: XP110ES, WU220ES, WU391EA#UUZ#*B1, WU391EA#UUZ#*B2, WU391EA#UUZ#*B3, WU391EA#UUZ#*B4 +2 more
Also known as: HP Elite 7100 Intel® Pentium® G6950 2 GB DDR3-SDRAM 320 GB Intel® GMA HD Windows 7 Professional Micro Tower PC Black

Specifications

136 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G6950
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
L2 cache	3 MB
Processor cache	3 MB
L3 cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G6000 Series for Desktop
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	21
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066
Memory bandwidth supported by processor (max)	17 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory clock speed	1333 MHz
Memory bus	64 bit
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD Super Multi
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Drive device, transfer rate	3072 MB/s
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA HD
On-board graphics card model	Integrated
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	533 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H57 Express

Optical drive

Specification	Value
LightScribe	Yes
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	No
Bluetooth	No
Networking features	Gigabit Ethernet
Wireless technology	Realtek 8111DL

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	14
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	0
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	1
Serial ports quantity	0
Parallel ports quantity	0
Audio input	1
I/O ports	1 x audio out 1 x center/sub 1 x digital out 1 x surround rear 1 x surround side

Expansion slots

Specification	Value
PCI Express x1 slots	3
PCI Express x16 slots	1

Power

Specification	Value
Power supply type	CA
Power requirements	120/230V, 50/60Hz
Power supply	300 W

Design

Specification	Value
Chassis type	Micro Tower
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Bundled software	HP Recovery Manager Intel Matrix Storage Manager HP Power Manager Mozilla Firefox - HP Virtual Solutions Roxio Easy Media Creator 10 Intervideo WinDVD 8 McAfee Total Protection Anti-Virus HP ProtectTools Security Suite

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43230
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system direct 3D sound	Yes
Audio system	Realtek ALC888S
Speakers	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80%

Weight & dimensions

Specification	Value
Width	18.5 mm
Depth	41.6 mm
Height	38.5 mm
Weight	10.2 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Remote control included	Yes

Multimedia

Specification	Value
Built-in camera	No

Other features

Specification	Value
Security features	Padlock loop
TV tuner integrated	No
