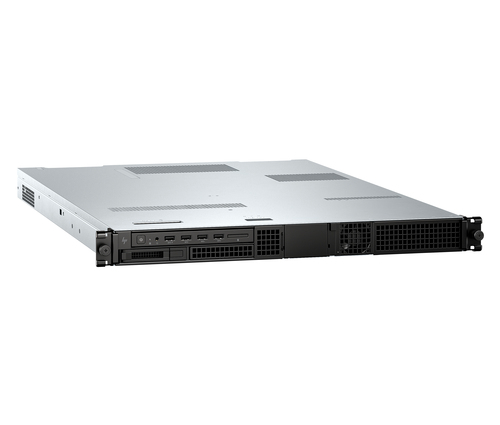

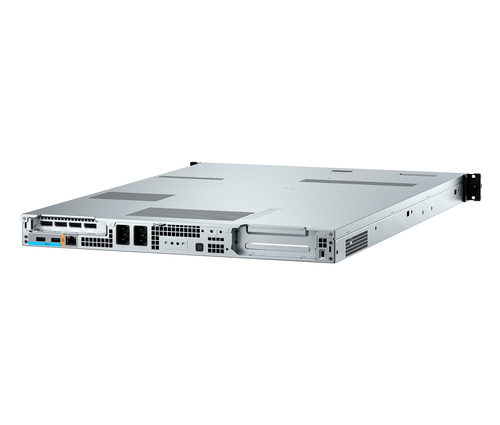

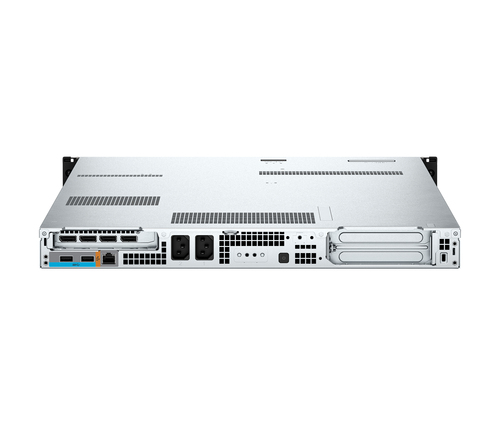

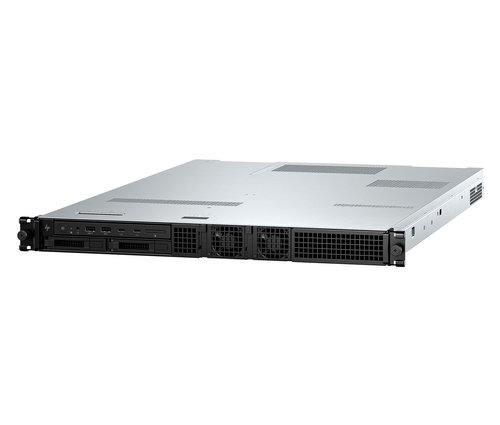

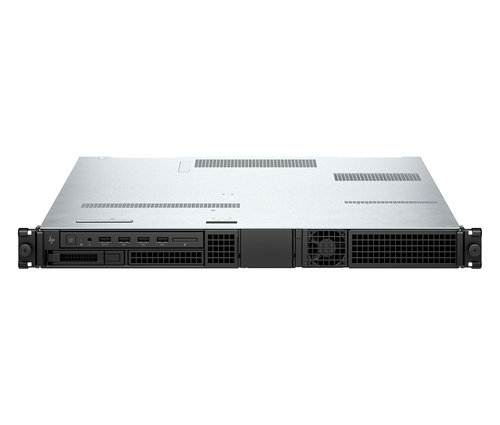

E53F3EA PC/workstation Intel Xeon w5 W5-2565X
32 GB DDR5-SDRAM 1 TB SSD Ubuntu Linux Rack-mounted chassis AI Workstation
Model E53F3EAEAN 885981343007
53 specifications
- ProcessorIntel Xeon w5
- Memory32 GB
- Storage1 TB
- OSUbuntu Linux
- Processor manufacturerIntel
- Market positioningPerformance
Overview
- Processor
- Intel Xeon w5
- Memory
- 32 GB
- Storage
- 1 TB
- OS
- Ubuntu Linux
- Processor manufacturer
- Intel
- Market positioning
- Performance
- Brand
- HP
- Category
- PCs/Workstations
- Model
- E53F3EA
- Part number
- E53F3EA
- EAN / UPC
- 885981343007
- Also known as
- HP E53F3EA PC/workstation Intel Xeon w5 W5-2565X 32 GB DDR5-SDRAM 1 TB SSD Ubuntu Linux Rack-mounted chassis AI Workstation
Specifications
53 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon w5 |
| Processor model | W5-2565X |
| Processor cores | 18 |
| Processor threads | 36 |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 37.5 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Memory module type | DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Performance
| Specification | Value |
|---|---|
| Market positioning | Performance |
| Motherboard chipset | Intel W790 |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 675 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | Ubuntu Linux |
Processor special features
| Specification | Value |
|---|---|
| Intel® Turbo Boost Technology | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Anyware Remote System Controller; HP Client Management Script Library (download); HP Cloud Recovery; HP Driver Packs; HP Image Assistant Gen5 (download) |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 885981343007 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 438 mm |
| Height | 43 mm |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT |
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_8550076_en-US-1.pdf |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43211515 |
