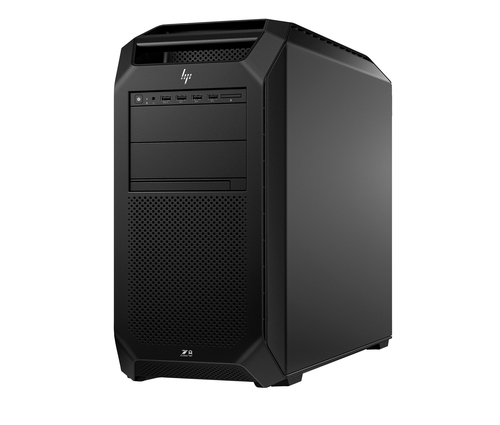

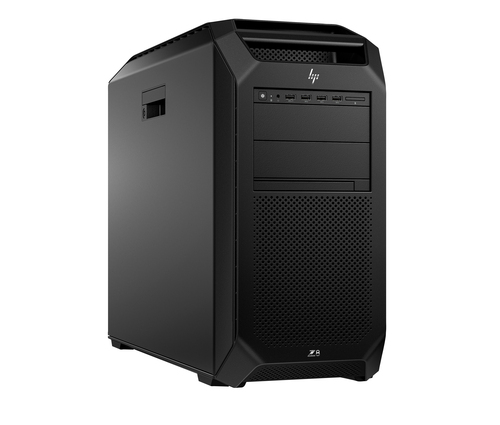

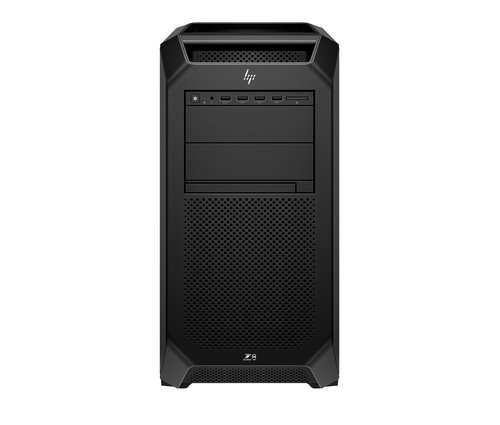

E39X1EA PC/workstation Intel® Xeon® Gold
256 GB DDR5-SDRAM 32 TB HDD+SSD Linux Tower AI Workstation
Model E39X1EAEAN 885981022513
80 specifications
- ProcessorIntel® Xeon® Gold
- Memory256 GB
- Storage32 TB
- TypeWorkstation
- OSLinux
- Weight22.5 kg
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 256 GB
- Storage
- 32 TB
- Type
- Workstation
- OS
- Linux
- Weight
- 22.5 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- E39X1EA
- Part number
- E39X1EA
- EAN / UPC
- 885981022513
- Also known as
- HP E39X1EA PC/workstation Intel® Xeon® Gold 256 GB DDR5-SDRAM 32 TB HDD+SSD Linux Tower AI Workstation
Specifications
80 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 32 |
| Processor threads | 64 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 60 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 8 x 32 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 5600 MHz |
| ECC | Yes |
| Memory module type | DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 3 |
| Total HDDs capacity | 24 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 12 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 8 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 8 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 96 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
| Motherboard chipset | Intel C741 |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

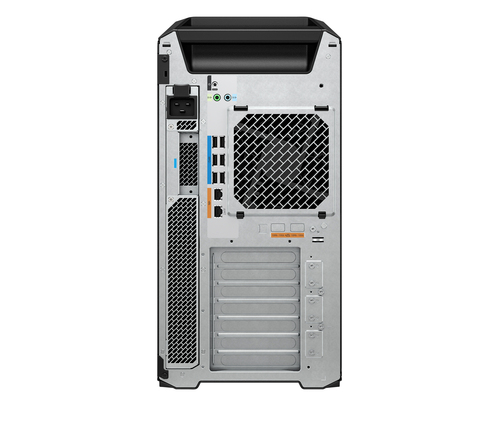

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 11 |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1125 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Processor special features
| Specification | Value |
|---|---|
| Intel® Turbo Boost Technology | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| HP GTIN (EAN/UPC) | 885981022513 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3205-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215.9 mm |
| Depth | 551.2 mm |
| Height | 215.9 mm |
| Weight | 22.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 332 mm |
| Package depth | 734 mm |
| Package height | 636 mm |
| Package weight | 27.9 kg |
Certificates
| Specification | Value |
|---|---|
| Low halogen | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| Sustainable technologies and materials | At least 40% post-consumer recycled plastic; At least 25% ITE-derived closed loop plastic; Ocean-bound plastic in system fan; At least 10% recycled metal; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Low hal |
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_5991453_en-US-1.pdf |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43211515 |
