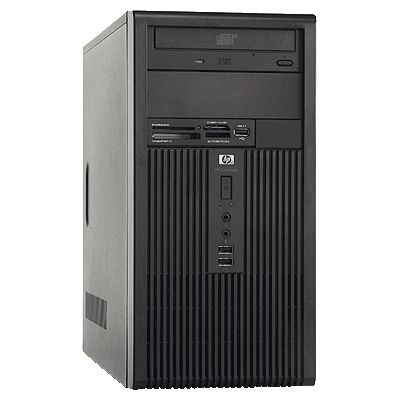

dx2300 Intel Pentium 4 HT 641
0.5 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows Vista Business Mini Tower PC
Model dx2300Part no. GE557LAEAN 883585206049
89 specifications
- ProcessorIntel Pentium 4 HT
- Memory0.5 GB
- Storage80 GB
- GraphicsIntel® GMA 3000
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel Pentium 4 HT
- Memory
- 0.5 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 3000
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- dx2300
- Part numbers
- GE557LA, GJ728LA
- EAN / UPC
- 883585206049
- Also known as
- HP dx2300 Intel Pentium 4 HT 641 0.5 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows Vista Business Mini Tower PC
Specifications
89 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium 4 HT |
| Processor model | 641 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3.2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 600 Series supporting Hyper-Threading Technology |
| Processor codename | Cedarmill |
| Thermal Design Power (TDP) | 80, 86 |
| Scenario Design Power (SDP) | 0 W |
| Tcase | 69.2 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 188 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 16 |
| Stepping | C1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 0.5 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 3000 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet, Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 27481 |
| Processor code | SL96K |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 416 mm |
| Height | 353 mm |
| Weight | 9.6 kg |
