HP dc7800 + L1940T monitor
Model dc7800 + L1940T monitorPart no. BKB884ES
89 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 3100
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 3100
- Brand
- HP
- Category
- PCs/Workstations
- Model
- dc7800 + L1940T monitor
- Part number
- BKB884ES
- Also known as
- HP dc7800 + L1940T monitor Intel® Core™2 Duo E6550 1 GB DDR2-SDRAM 160 GB Intel® GMA 3100 Windows XP Professional SFF PC
Specifications
89 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6550 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.33 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E6000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | G0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3100 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Contrast ratio (typical) | 700:1 |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 135° |
| Display | TFT |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 30783 |
| Processor code | SLA9X |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 458 mm |
| Height | 25 mm |
| Weight | 8.5 kg |
What people say
Reviews & ratings
HP dc7800 + L1940T monitor
No reviews yet
Be the first to tell others how HP dc7800 + L1940T monitor works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP dc7800 + L1940T monitor

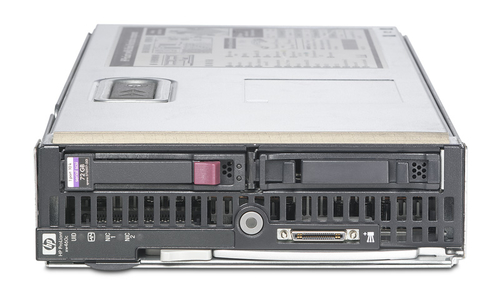

All pcs/workstations comparisons- HP dc7800 + L1940T monitor vsHP ProLiant xw460c BladeCompare specs
- HP dc7800 + L1940T monitor vsHP xw4550 AMD Opteron 1220 2.80GHz 1GB/250GB No graphics DVD+/-RW WVST Bus WorkstationCompare specs
- HP dc7800 + L1940T monitor vsHP xw6400 Intel® Xeon®Compare specs
- HP dc7800 + L1940T monitor vsHP Compaq dc7800p Intel Core™2 Duo Processor E6550 1G/80G DVD-ROM WVST Bus Small Form Factor PCCompare specs

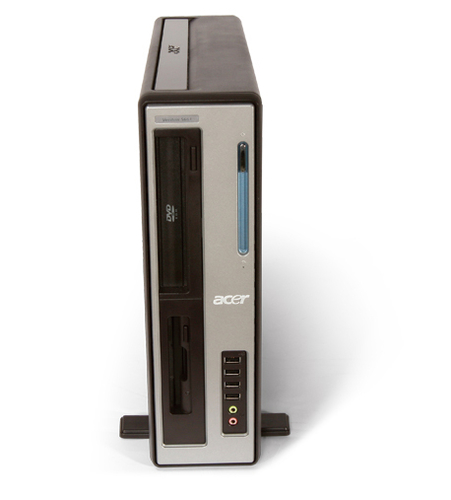

- HP dc7800 + L1940T monitor vsAcer Veriton S661Compare specs

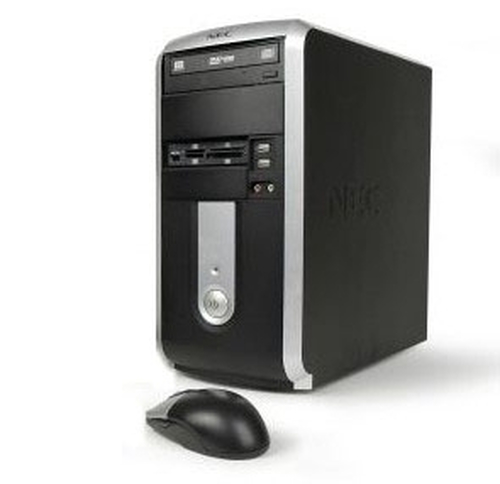

- HP dc7800 + L1940T monitor vsNEC PowerMate ML450 MT - Intel Core 2 Duo E6420, 2048MB, 160GB, DVD-RW, Vista BusinessCompare specs

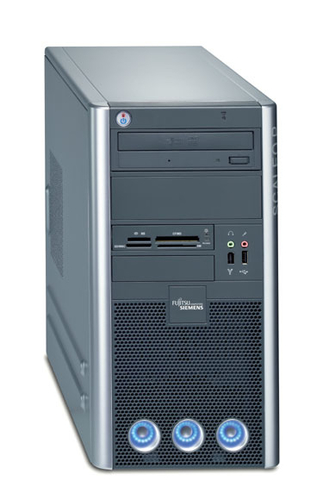

- HP dc7800 + L1940T monitor vsFujitsu SCALEO Pi 2533Compare specs
