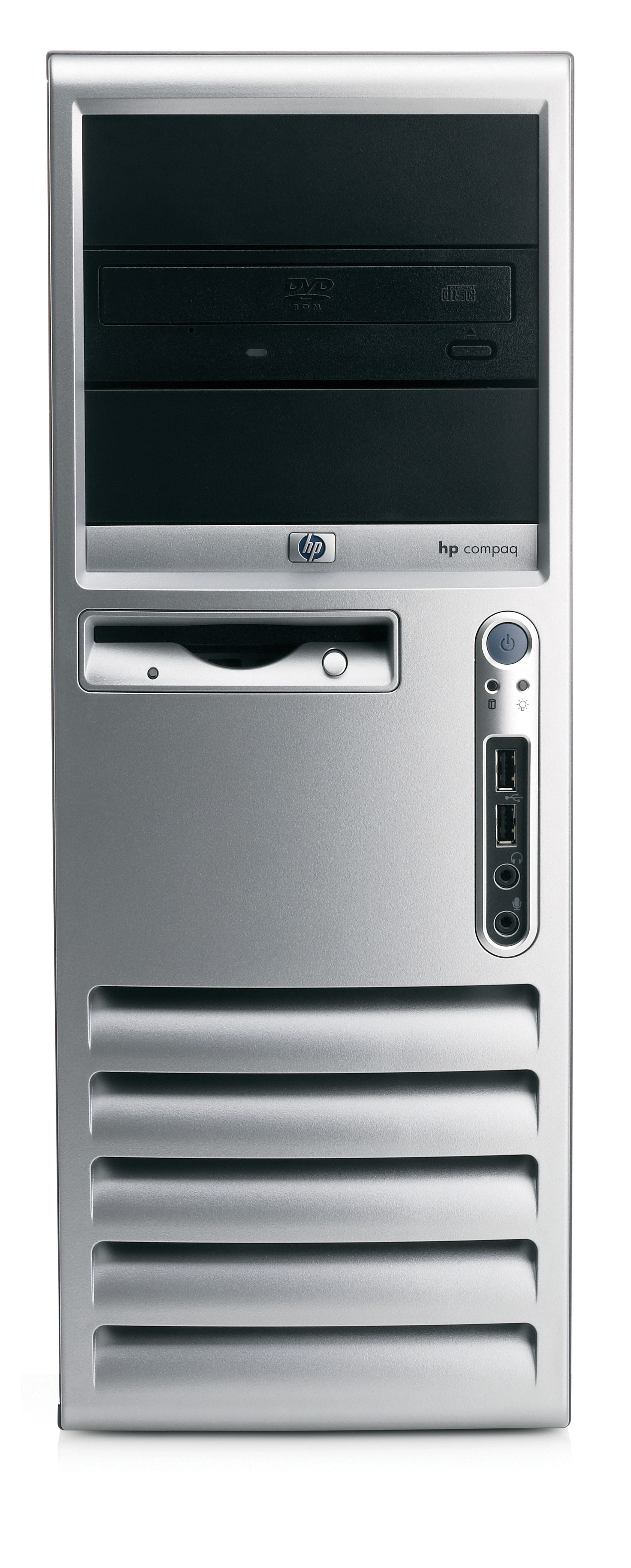

Compaq dc7700 Intel® Core™2 Duo E6300

1 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows XP Professional Mini Tower PC

Model dc7700Part no. RR974LAEAN 883585358359

126 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
GraphicsIntel® GMA 3000
TypePC
OSWindows XP Professional

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Graphics: Intel® GMA 3000
Type: PC
OS: Windows XP Professional

Brand: HP
Category: PCs/Workstations
Model: dc7700
Part numbers: RR974LA, RG577AW, GQ796ES, GQ798ES, RR972LA
EAN / UPC: 883585358359, 882780712775, 882780712867, 882780712959 +18 more
Also known as: HP Compaq dc7700 Intel® Core™2 Duo E6300 1 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows XP Professional Mini Tower PC

Specifications

126 specifications in 22 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6300
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	61.4 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	7
Stepping	R0
ECC supported by processor	No
Cache external	2048 KB

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory clock speed	667 MHz
Memory upgrade	4 GB
Standard memory capacity	1 MB

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD-ROM
HDD interface	SATA
HDD speed	7200 RPM
Storage drive controller	Serial ATA 1.5 Gb/s or Serial ATA 3.0 Gb/s
Disk subsystem controller	Serial ATA 3.0 Gb/s
Diskette drive	Optional N

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3000
Maximum graphics card memory	0.128 GB
Video card features	3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 3000 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MH
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q965 Express

Optical drive

Specification	Value
CD read speed	48x
DVD read speed	16x

Network

Specification	Value
Modem type	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
I/O ports	Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0, headphone and microphone Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0,
Rear ports	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 audio in; 1 audio out; 1 microphone in; 1 RJ-45; 1 external VGA monitor

Expansion slots

Specification	Value
Expansion slots	2 full-height PCI, 1 full-height PCI Express x1, 1 full-height PCI Express x16, 2 optional full-height PCI, HP 16-in-1 Media Reader

Power

Specification	Value
Power supply type	365W power supply - active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Power supply	365 W
Power consumption (typical)	365 W

Design

Specification	Value
Chassis type	Mini Tower
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows XP Professional
Applications supported	Windows Vista Premium ready
Bundled software	HP Protect Tools Security Software Suite, HP Client Manager Software, HP Open View Configuration Management solutions, Altiris Deployment Solution, Symantec Antivirus 10.0 with 60 day Live Update Subscription, HP Insight Diagnostics Software Adobe Acrobat Reader, PDF Complete, Altiris Local Recovery
Driver LAN	Microsoft 2000, Microsoft XP

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27248
Processor code	SLGW2
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC262
Audio included	Integrated High Definition audio with Realtek ALC262 High Definition audio codec

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width	168 mm
Depth	452 mm
Height	448 mm
Weight	14.7 kg
Size (imperial)	16.8 cm (6.6")
Weight (imperial)	31.18 lb

Packaging data

Specification	Value
Package weight	7 kg

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse, USB optical scroll mouse or PS/2 optical scroll mouse
Keyboard type	2004 standard PS/2

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC262 codec (all ports are stereo)

Features

Specification	Value
Security management description	Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software

Other features

Specification	Value
Security features	Kensington Cable Lock, Hood Cover Security Loop supported, HP Desktop Security Lock, Integrated 1.2 TPM chip (except for Russia) (ProtectTools software optional)
Drive bays	2 internal 3.5 inch 3 external 5.25 inch, 1 external 3.5 inch
UNSPSC-code	43211507
