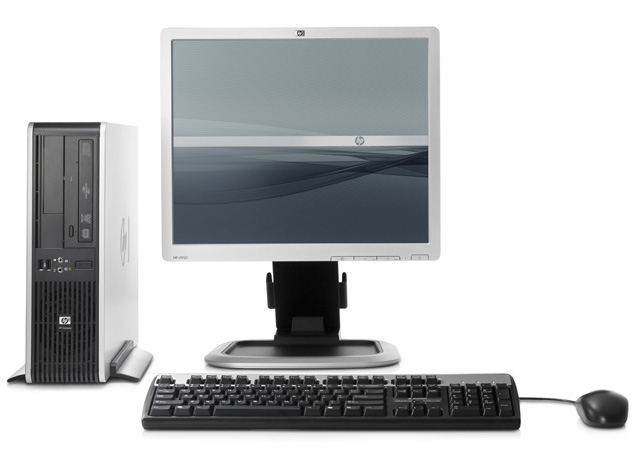

HP dc5800 SFF + L1710

Model dc5800 SFF + L1710Part no. NN499ET_GS917AT

107 specifications

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 3100

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 3100

Brand: HP
Category: PCs/Workstations
Model: dc5800 SFF + L1710
Part number: NN499ET_GS917AT
Also known as: HP dc5800 SFF + L1710 Intel® Core™2 Duo E7500 2 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista Business PC

Specifications

107 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E7500
Processor cores	2
Processor threads	2
Processor frequency	2.93 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E7000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	11
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory clock speed	800 MHz

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD±RW
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Diskette drive	Optional

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3100

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0

Power

Specification	Value
Power supply	240 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Country of origin	China

Software

Specification	Value
Operating system installed	Windows Vista Business
Compatible operating systems	FreeDOS
Bundled software	On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Software Agent, HP Client Configuration Manager, HP Client Manager for Altiris, HP SoftPaq Download Manager,

Display

Specification	Value
Display included	Yes
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Contrast ratio (typical)	800:1
Display brightness	300 cd/m²
Viewing angle, horizontal	160°
Viewing angle, vertical	160°

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36503
Processor code	SLB9Z
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	9144

Weight & dimensions

Specification	Value
Width	337 mm
Depth	378 mm
Height	100 mm
Weight	8.1 kg

Features

Specification	Value
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
