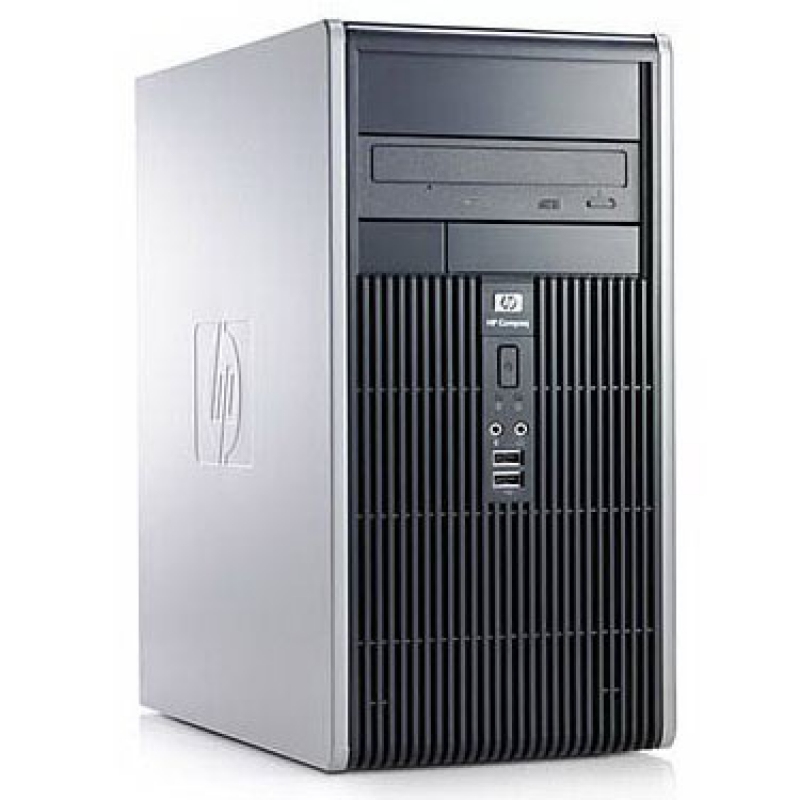

Compaq dc5700 Intel® Core™2 Duo E6300

0.512 GB DDR2-SDRAM 80 GB HDD Windows XP Professional Tower PC Black, Silver

Model dc5700Part no. RL175AWEAN 882780812147

91 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: dc5700
Part numbers: RL175AW, RG888ET, GK997LA, EW287AV
EAN / UPC: 882780812147, 4053162214255, 882780794115, 882780811720 +17 more
Also known as: HP Compaq dc5700 Intel® Core™2 Duo E6300 0.512 GB DDR2-SDRAM 80 GB HDD Windows XP Professional Tower PC Black, Silver

91 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6300
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	61.4 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	7

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD-ROM
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	80 GB
HDD interface	SATA, SATA II
HDD speed	7200 RPM
HDD size	3.5"

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® GMA 3000

Specification	Value
Product type	PC
Motherboard chipset	Intel 963Q Express

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1

Specification	Value
Power supply	365 W

Specification	Value
Operating system installed	Windows XP Professional
Operating system architecture	32-bit

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Processor ARK ID	27248
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
