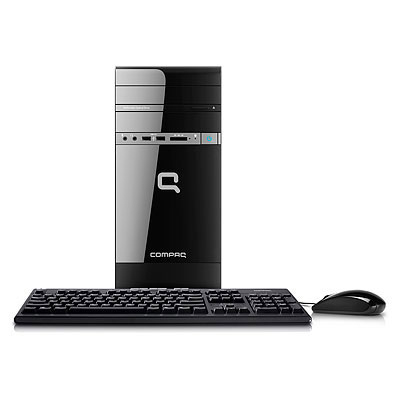

HP Compaq CQ2701ED Intel Pentium G G630T

4 GB DDR3-SDRAM 1 TB Windows 7 Home Premium Tower PC Black

Model CQ2701EDPart no. B2H42EA#ABH

127 specifications

ProcessorIntel Pentium G
Memory4 GB
Storage1 TB
GraphicsNot available
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel Pentium G
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: Windows 7 Home Premium

Brand: HP
Category: PCs/Workstations
Model: CQ2701ED
Part number: B2H42EA#ABH
Also known as: HP Compaq CQ2701ED Intel Pentium G G630T 4 GB DDR3-SDRAM 1 TB Windows 7 Home Premium Tower PC Black

Specifications

127 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630T
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	35 W
Tcase	65 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	23
Maximum number of SMP processors	1
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
HDD speed	7200 RPM
Number of SSDs installed	0
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
Number of discrete graphics cards	0
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card memory	1.3 GB
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Password protection type	BIOS
Audio output channels	5.1 channels

Optical drive

Specification	Value
LightScribe	No
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wi-Fi standards	Not supported
Bluetooth	No
Internal modem	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Thunderbolt ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
Firewire (IEEE 1394) ports	0

Power

Specification	Value
Power supply type	AC
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Tower
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Symantec Norton Internet Security 2012
Bundled software	Microsoft Office Starter

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53484
Processor code	SR05U
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width	382 mm
Depth	165 mm
Height	355 mm
Weight	5.54 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	594 x 485 x 396 mm
Package weight	13.8 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Electromagnetic compatibility	FCC, CE
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
