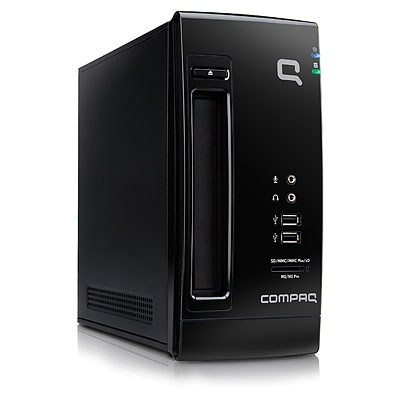

CQ2200NL Intel Atom® 230
1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition Micro Tower PC
Model CQ2200NLPart no. VC867AA#ABHEAN 884962201022
89 specifications
- ProcessorIntel Atom®
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 950
- TypePC
- OSWindows XP Home Edition
Overview
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 950
- Type
- PC
- OS
- Windows XP Home Edition
- Brand
- HP
- Category
- PCs/Workstations
- Model
- CQ2200NL
- Part number
- VC867AA#ABH
- EAN / UPC
- 884962201022
- Also known as
- HP CQ2200NL Intel Atom® 230 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition Micro Tower PC
Specifications
89 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | 230 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom 200 Series |
| Processor codename | Diamondville |
| Thermal Design Power (TDP) | 4 W |
| Tcase | 85.2 °C |
| Processor socket | BGA 437 |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 1x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet, Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
| Bundled software | Microsoft Works; Microsoft Internet Explorer 6.0; Outlook Express; Adobe Reader; Windows Media Player; Windows Movie Maker; Cyberlink Power2Go |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35635 |
| Processor code | SLB6Z |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 5.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112 mm |
| Depth | 246 mm |
| Height | 260 mm |
| Weight | 4.3 kg |
