-RW FreeDos Small Form Factor PC

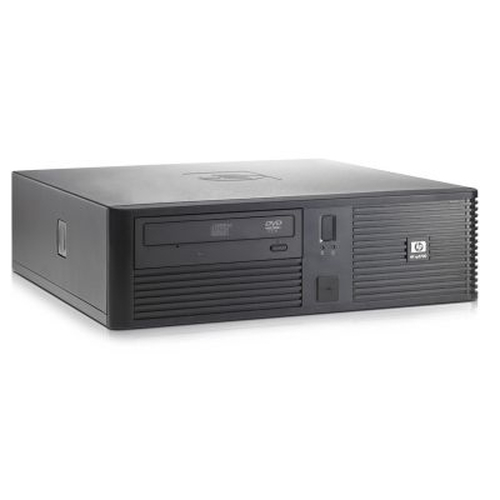

Model Compaq rp5700 Pentium E2160 512M/80G DVD+/-RW FreeDos Small Form Factor PCPart no. GK857AAEAN 883585258338

122 specifications

ProcessorIntel® Itanium®
Memory0.5 GB
Storage80 GB
GraphicsIntel® GMA 3000
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel® Itanium®
Memory: 0.5 GB
Storage: 80 GB
Graphics: Intel® GMA 3000
Type: PC
OS: FreeDOS

Brand: HP
Category: PCs/Workstations
Model: Compaq rp5700 Pentium E2160 512M/80G DVD+/-RW FreeDos Small Form Factor PC
Part numbers: GK857AA, GK857AA#ABH
EAN / UPC: 883585258338, 883585257720, 883585257096, 883585257362 +1 more
Also known as: HP Compaq rp5700 Pentium E2160 512M/80G DVD+/-RW FreeDos Small Form Factor PC Intel® Itanium® 0.5 GB DDR2-SDRAM 80 GB Intel® GMA 3000

Specifications

122 specifications in 21 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Itanium®
Processor model	E2160
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E2000 Series for Desktop
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	73.3 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	105 M
Processing Die size	77 mm²
CPU multiplier (bus/core ratio)	9
Stepping	M0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	0.5 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD±RW
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Storage drive controller	SMART III SATA 3.0 GB/s
Disk subsystem controller	SMART III SATA 3.0 GB/s
Diskette drive	No
Storage drive type	80 GB

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3000
Graphics card family	Intel
Video card features	RAMDAC integrated (400-MHz); Controller Clock Speed: 667 MHz; Overlay Planes: One 16 bit video overlay plane; Max Color Depth: 32-bits/pixel; Multi-display Support: Support for one VGA and one DVI-I, in conjunction with an ADD2 card, clone and extended desktop modes are supported. Integrated Intel G
Video adapter, bus	SDVO
Video card resolution	Maximum Vertical Refresh Rate: 75Hz at 2048x1536

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q963 Express
Acoustic power emissions	IDLE (Fixed disk drive spinning): LWAd = 3.6 Bels; FIXED DISK (Random write): LWAd = 3.8 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 4.9 Bels

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Modem type	No
Networking features	Broadcom NetXtreme Gigabit Ethernet NIC

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	2
Parallel ports quantity	1
I/O ports	1 RJ-45; 6 USB 2.0; 1 line in; 1 line out; 1 VGA; 1 parallel; 2 RS-232 (power configurable); 2 PS/2

Expansion slots

Specification	Value
PCI Express x1 slots	1
Expansion slots	2 x PCI

Power

Specification	Value
Power requirements	90 – 264 VAC, 50/60 Hz, 47 – 63 Hz
Power consumption (typical)	240 W
Power management	Active Power Factor Correction (PFC) 90 to 264 VAC operating voltage range; 100 to 240 VAC rated voltage range; 50-60 Hz rated line frequency; 47-63 Hz operating line frequency range; 80-mm power supply fan - variable speed for optimum acoustics; Power Consumption in ES Mode - Suspend to RAM (S3) (I

Design

Specification	Value
Country of origin	China

Software

Specification	Value
Operating system installed	FreeDOS
Bundled software	Roxio Easy Media Creator (included with DVD Writer drives), Intervideo WinDVD (supplied with DVD drive), HP Backup and Recovery Manager, HP Insight Diagnostics HP Client Management Solutions, HP Backup and Recovery Manager, Symantec AntiVirus with 60 day Live Update, PDF complete, Microsoft Internet
Driver LAN	Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000, FreeDos

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29739
Processor code	SLA8Z
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD
Audio included	Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 90%
Relative humidity	20 - 85%
Non-operating altitude	9144
Operating temperature (T-T)	50 - 104 °F
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width	340 mm
Depth	380 mm
Height	100 mm
Weight	8.9 kg
Size (imperial)	34 cm (13.4")
Weight (imperial)	19.43 lb

Packaging data

Specification	Value
Package weight	1.9 kg

Keyboard

Specification	Value
Pointing device	PS/2 scroll mouse; USB scroll mouse; USB optical scroll mouse
Keyboard type	PS/2 standard keyboard; USB standard keyboard; USB BG1650 keyboard (EMEA)

Features

Specification	Value
Manageability features	5-Year Life Cycle, Steel Chassis
Security management description	TPM 1.2 Embedded Security Chip integrated with Broadcom NIC (TPM module disabled where use is restricted by law); HP ProtectTools Security Software Suite with BIOS Configuration (serial, parallel, USB enable/disable), Credential Manager, Smart Card Manager (sold separately); HP Desktop Security Lock

Other features

Specification	Value
Security features	Kensington Cable Lock, Smart Card Manager (sold separately), HP Desktop Security Lock Kit (lock and cable) (sold separately), Wall Mount/Security Sleeve (sold separately)
Drive bays	1 – 5.25-in 2 - 3.5-in
