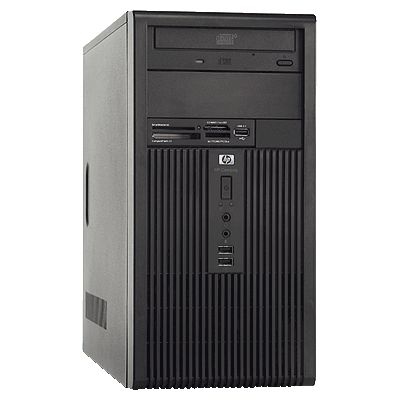

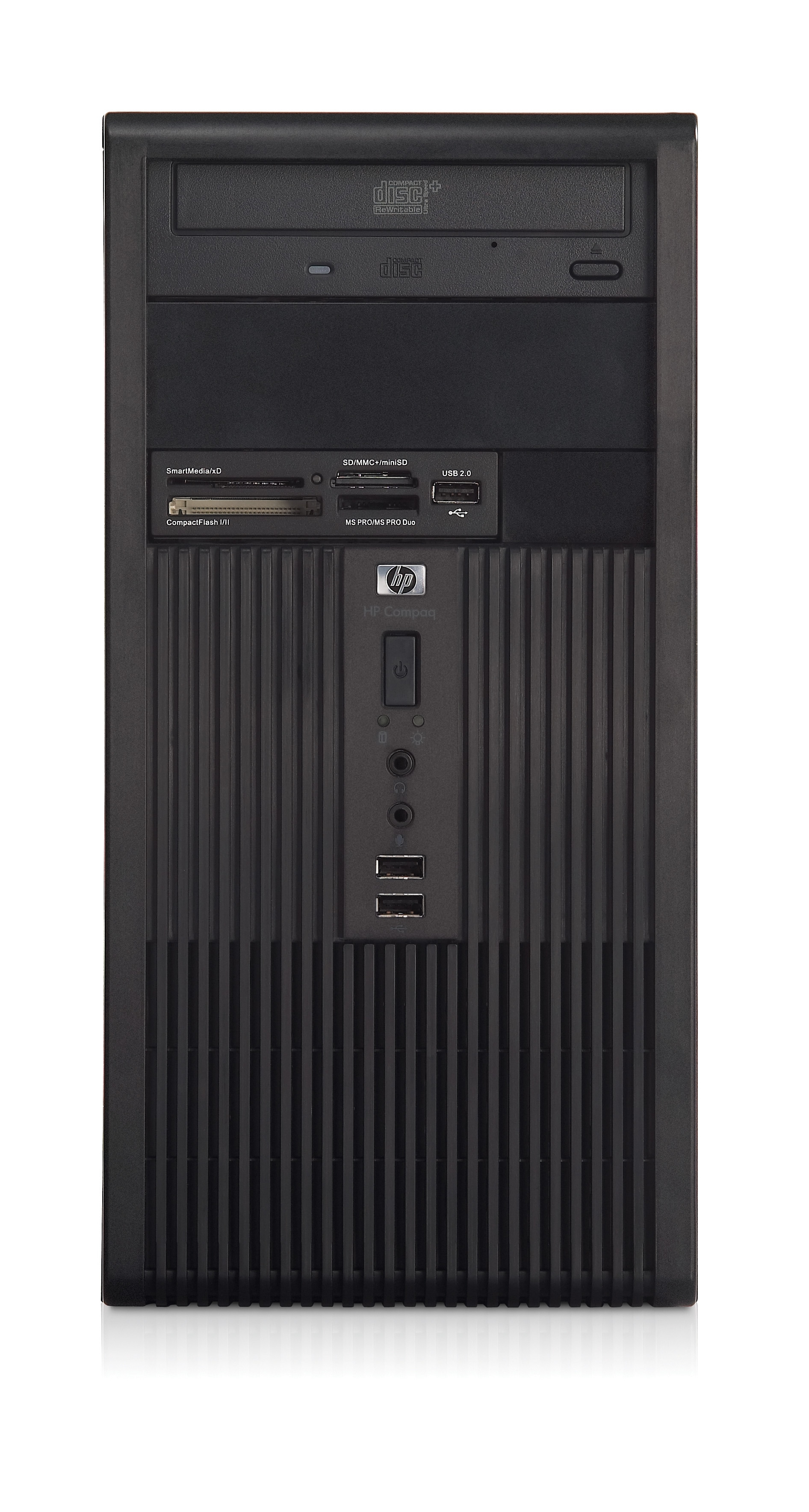

-RW WVST Bus Microtower PC

Model Compaq dx2300 Intel Celeron D Processor 420 512M/80G DVD+/-RW WVST Bus Microtower PCPart no. GK595EAEAN 883585304325

64 specifications

ProcessorIntel® Celeron®
Memory0.5 GB
Storage80 GB
GraphicsIntel® GMA 3000
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 0.5 GB
Storage: 80 GB
Graphics: Intel® GMA 3000
Type: PC
OS: Windows Vista Business

Brand: HP
Category: PCs/Workstations
Model: Compaq dx2300 Intel Celeron D Processor 420 512M/80G DVD+/-RW WVST Bus Microtower PC
Part number: GK595EA
EAN / UPC: 883585304325, 883585304332, 883585372317
Also known as: HP Compaq dx2300 Intel Celeron D Processor 420 512M/80G DVD+/-RW WVST Bus Microtower PC Intel® Celeron® 0.5 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows Vista Bu

Specifications

64 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor frequency	1.6 GHz
Processor front side bus	800 MHz

Memory

Specification	Value
Internal memory	0.5 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x DIMM
Memory upgrade	2 GB

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD±RW
HDD interface	SATA
HDD speed	7200 RPM
Storage drive controller	SATA 3.0 Gb/s
Disk subsystem controller	SMART III Serial ATA 3.0 GB/s
Diskette drive	Optional

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3000
Video card features	Intel GMA 950 3D/2D Controller: support is fully compliant with Microsoft standard API such as Direct Draw, GDI/GDI+ and Direct Show; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth:
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536

Performance

Specification	Value
Product type	PC
Acoustic power emissions	IDLE (Fixed disk drive spinning): LWAd = 4.3 Bels; FIXED DISK (Random write): LWAd = 4.8 Bels; CD-ROM (Sequential Reads): LWAd = 5.0 Bels

Network

Specification	Value
Modem type	No
Networking features	Ethernet/Fast Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Rear: 4 USB 2.0, 1 serial port, 1 optional second serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Mic In, Front: 2 USB 2.0, audio ports

Expansion slots

Specification	Value
Expansion slots	1 full-height PCI, 2 full-height PCI Express x1, 1 full-height PCI Express x16

Power

Specification	Value
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, passive PFC Passive Power Factor Correction (PFC) - with line switch set to 230V - No PFC in 115V line switch position; 90 to 140VAC, or 180 to 264VAC operating voltage range; 100 to 127 VAC, or 200 to 240VAC rated voltage range; 50-60 Hz
Power consumption (typical)	250 W
Power management	No

Design

Specification	Value
Chassis type	Micro Tower
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows Vista Business
Compatible operating systems	Genuine Windows XP Professional, Genuine Windows XP Home, FreeDOS
Bundled software	Optional on selected models only: Microsoft Windows XP Home, Microsoft Windows XP Pro, Microsoft Windows Vista Business, Microsoft Windows Vista Home Basic, Microsoft Office 2007 Basic and Microsoft Office 2007 Small Business, Microsoft Office 2007 Professional Microsoft Works 8.5, Roxio Easy Media
Driver LAN	Microsoft 2000, Microsoft XP

Display

Specification	Value
Display included	No

Audio

Specification	Value
Audio system	Realtek ALC888
Audio included	Integrated High Definition audio with Realtek ALC888 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	10 - 95%

Weight & dimensions

Specification	Value
Width	175 mm
Depth	416 mm
Height	353 mm
Weight	9.6 kg

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse 2-Button Scroll Mouse (PS/2) or 2-Button Optical Scroll Mouse (PS/2 or USB)
Keyboard type	2004 standard PS/2 HP Standard (PS/2, USB)

Features

Specification	Value
Security management description	Kensington Cable Lock Provision (Lock not included); Padlock Security Loop (Lock not included)

Other features

Specification	Value
Security features	HP Business security lock kit optional
Drive bays	2 internal 3.5 inch 2 external 5.25 inch, 1 external 3.5 inch
UNSPSC-code	43211507
