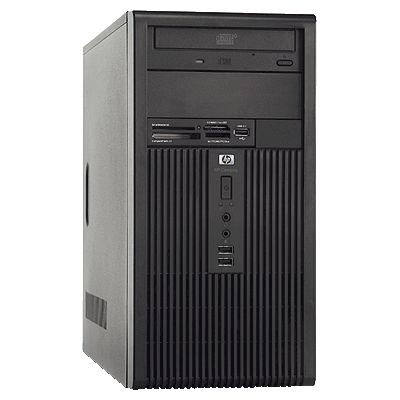

HP Compaq dx2300 Base Model Microtower PC
Model Compaq dx2300 Base Model Microtower PCPart no. RV798AV#ABH?BDL1
84 specifications
- ProcessorIntel® Pentium® D
- Memory0.5 GB
- Storage80 GB
- TypePC
- OSWindows XP Professional
- Weight9.6 kg
Overview
- Processor
- Intel® Pentium® D
- Memory
- 0.5 GB
- Storage
- 80 GB
- Type
- PC
- OS
- Windows XP Professional
- Weight
- 9.6 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dx2300 Base Model Microtower PC
- Part numbers
- RV798AV#ABH?BDL1, RV798AV, RV796AV, RV798AV#ABH?BDL, RV798AV#ABH?BDL/KIT1, RV798AV#ABH?BDL/KIT2 +2 more
- Also known as
- HP Compaq dx2300 Base Model Microtower PC Intel® Pentium® D 925 0.5 GB DDR2-SDRAM 80 GB Windows XP Professional
Specifications
84 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® D |
| Processor model | 925 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium D 900 Series |
| Processor codename | Presler |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 63.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 376 M |
| Processing Die size | 162 mm² |
| CPU multiplier (bus/core ratio) | 15 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| HDD speed | 7200 RPM |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 27517 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 416 mm |
| Height | 353 mm |
| Weight | 9.6 kg |
| Size (imperial) | 17.5 cm (6.89") |
