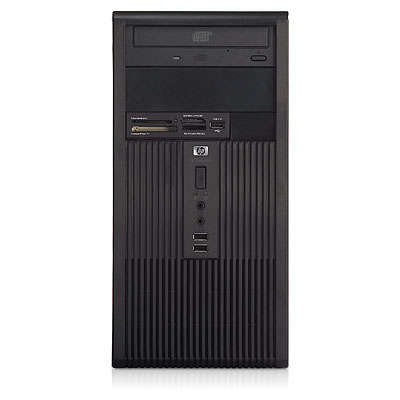

HP Compaq dx2300
Model Compaq dx2300Part no. KV410ES
87 specifications
- ProcessorIntel® Celeron®
- Memory1 GB
- Storage80 GB
- GraphicsIntel® GMA 3000
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Celeron®
- Memory
- 1 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 3000
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dx2300
- Part numbers
- KV410ES, KH110LA
- Also known as
- HP Compaq dx2300 Intel® Celeron® E1200 1 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows Vista Business Micro Tower PC Black
Specifications
87 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | E1200 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron Processor E1000 Series for Desktop |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 73.3 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 105 M |
| Processing Die size | 77 mm² |
| CPU multiplier (bus/core ratio) | 8 |
| Stepping | M0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| Optical drive type | DVD-ROM |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3000 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI 2.3 2 x PCIe x1 1 x PCIe x16 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Product colour | Black |
| External drive bays | 2 x 5.25", 1 x 3.5" |
| Internal drive bays | 2 x 3.5" |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 34440 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 6.89 mm |
| Depth | 16.4 mm |
| Height | 13.9 mm |
| Weight | 9.6 kg |
