HP Compaq dc7900 Small Form Factor PC (ENERGY STAR)
Model Compaq dc7900 Small Form Factor PC (ENERGY STAR)Part no. FU036ET#ABU? L1710EAN 884420304111
131 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage250 GB
- GraphicsIntel® GMA 4500M
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Intel® GMA 4500M
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7900 Small Form Factor PC (ENERGY STAR)
- Part numbers
- FU036ET#ABU? L1710, FS488AW#ABH, FU036ET#ABH, FU042ET, FS493AW, FS488AW +34 more
- EAN / UPC
- 884420304111, 884420491248, 884420284826, 884420296256 +44 more
- Also known as
- HP Compaq dc7900 Small Form Factor PC (ENERGY STAR) Intel® Core™2 Duo E8500 2 GB DDR2-SDRAM 250 GB Intel® GMA 4500M Windows Vista Business SFF
Specifications
131 specifications in 22 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E8500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3.16 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E8000 Series |
| Processor codename | Wolfdale |
| Processor system type | DP |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 9.5 |
| Processor core voltage (AC) | 0.850/1.3625 V |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 800 MHz |
| Minimum RAM | 512 MB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD Super Multi |
| HDD capacity | 250 GB |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Maximum HDD capacity | 500 GB |
| Minimum storage drive space | 80 GB |
| Storage drive controller | SATA 3.0GB/s |
| Diskette drive | Optional |
| Storage drive type | 250 GB 7200 rpm SATA 3.0 Gb/s NCQ, Smart IV |
| HDD controller type | SATA (7200 rpm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 4500M |
| Video card features | Integrated Intel Graphics Media Accelerator 4500 |
| Video adapter, bus | PCI Express x16 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Network |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| I/O ports | 2 USB 2.0; 1 headphone/line-out; 1 microphone in |

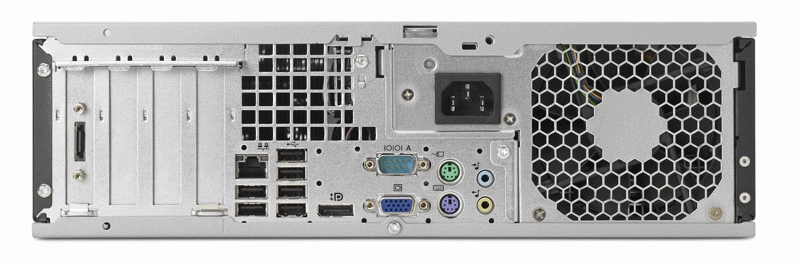

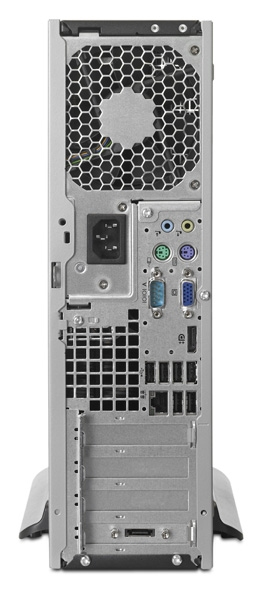

| Rear ports note | 6 USB 2.0; 1 serial; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 DisplayPort; 1 audio in; 1 audio out; 1 parallel (optional); 1 serial (optional 2nd); 1 eSATA (optional) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Expansion slots | 1 x PCI |
Power
| Specification | Value |
|---|---|
| Power supply type | 240W 85% Efficient - Active PFC |
| Power requirements | 240W power supply – active PFC; 240W 85% efficient power supply – active PFC |
| Power consumption (typical) | 240 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 1 x 5.25", 1 x 3.5" |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Compatible operating systems | Genuine Windows XP Professional; Genuine Windows XP Home |
| Bundled software | On some models only (not included with FreeDOS): HP ProtectTools Security Software Suite Version 4.0, HP Power Manager, HP Firefox Virtual Browser, HP Backup and Recovery Manager, HP Insight Diagnostics Software (available via HP Backup and Recovery Manager), Computer Setup Utility, McAfee AntiVirus |
| Driver LAN | Microsoft Windows Vista, Microsoft Windows XP |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33911 |
| Processor code | SLAPK |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Audio included | Integrated HD audio with ADI1884 codec, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 378 mm |
| Height | 100 mm |
| Weight | 8.5 kg |
| Size (imperial) | 33.8 cm (13.3") |
| Weight (imperial) | 18.75 lb |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR qualified; EPEAT Gold; 85% efficient power supply |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | PS/2 2-button optical scroll mouse |
| Keyboard type | PS/2 standard keyboard |
Multimedia
| Specification | Value |
|---|---|
| Multimedia | Integrated High Definition audio with ADI1884 codec (all ports are stereo) |
Features
| Specification | Value |
|---|---|
| Manageability features | Energy efficient, space saving design. Long, stable lifecycle. |
| Security management description | HP ProtectTools Security Software Suite; Embedded TPM 1.2 compliant security module (TPM module disabled where use is restricted by law); TPM Pre-Boot Authentication (via BIOS); Smartcard Pre-boot Authentication (via BIOS); Stringent Security (via BIOS - must be enabled); SATA port disablement (via |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock, Solenoid Hood Lock / Sensor, HP 2008 (SFF) Wall Mount/Security Sleeve |
| Drive bays | 1 - 3.5-in; 1 – 5.25-in 1 – 3.5-in |
