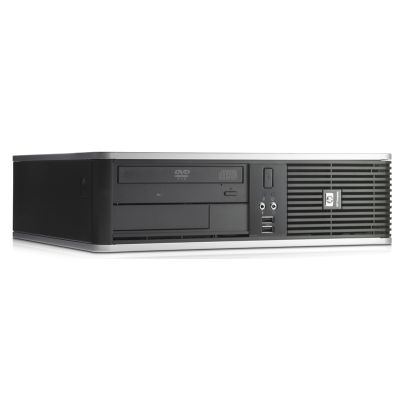

HP Compaq dc7900 Small Form Factor PC
Model Compaq dc7900 Small Form Factor PCPart no. KR670UT#ABA-B2EAN 884420294290
131 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 4500M
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 4500M
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7900 Small Form Factor PC
- Part numbers
- KR670UT#ABA-B2, KR823UT#ABA-A1, NV271UT#ABA-A1, NV272UT#ABA-A1, NV277UT#ABA-A1, KR671UT#ABA1052 +34 more
- EAN / UPC
- 884420294290, 884420294306, 884420294313, 884420294429 +28 more
- Also known as
- HP Compaq dc7900 Small Form Factor PC Intel® Core™2 Duo E8500 2 GB DDR2-SDRAM 160 GB Intel® GMA 4500M Windows Vista Business SFF
Specifications
131 specifications in 23 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E8500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3.16 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E8000 Series |
| Processor codename | Wolfdale |
| Processor system type | DP |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 9.5 |
| Processor core voltage (AC) | 0.850/1.3625 V |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory clock speed | 800 MHz |
| Minimum RAM | 512 MB |
| Standard memory capacity | 2 MB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | SATA 3.0GB/s with NCQ and Smart IV |
| Disk subsystem controller | SATA 3.0Gb/s |
| Diskette drive | Optional 1.44 MB Diskette Drive, HP Media Card Reader 16-in-1 (5.25" with PCI) |
| Storage drive type | 2 x 160 GB with optional dual drive RAID + Sata 2nd Cable |
| HDD note | RAID 1 Mirrored Array configuration |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 4500M |
| Video card features | 3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; Integrated 400 MHz RAMDAC; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-disp |
| Video adapter, bus | PCI Express x16 |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| I/O ports | Rear: 6 USB 2.0, 1 serial port, 2 PS/2, 1 RJ-45, 1 VGA, 1 DisplayPort, audio in/out; Front: 2 USB 2.0, audio ports; Optional: 2nd serial port, 1 parallel port |
| Rear ports | 6 USB 2.0; 1 serial; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 DisplayPort; 1 audio in; 1 audio out; 1 parallel (optional); 1 serial (optional 2nd); 1 eSATA (optional) |
| Rear ports note | 6 USB 2.0; 1 serial; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 DisplayPort; 1 audio in; 1 audio out; 1 parallel (optional); 1 serial (optional 2nd); 1 eSATA (optional) |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 low-profile PCI, 2 low-profile PCI Express x16, 1 low-profile PCI Express x1 |
Power
| Specification | Value |
|---|---|
| Power supply type | 240W 85% Efficient - Active PFC |
| Power requirements | Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (85% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; with Energy Efficient Powe |
| Power supply | 240 W |
| Power consumption (typical) | 240 W |
| Power management | Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; with Energy Efficient Power Supply: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/ |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Compatible operating systems | Genuine Windows XP Professional; Genuine Windows XP Home |
| Bundled software | On some models only (not included with FreeDOS): HP ProtectTools Security Software Suite Version 4.0, HP Power Manager, HP Firefox Virtual Browser, HP Backup and Recovery Manager, HP Insight Diagnostics Software (available via HP Backup and Recovery Manager), Computer Setup Utility, McAfee AntiVirus |
| Driver LAN | Microsoft Windows Vista, Microsoft Windows XP |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33911 |
| Processor code | SLAPK |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Audio included | Integrated HD audio with ADI1884 codec, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 378 mm |
| Height | 100 mm |
| Weight | 8.5 kg |
| Size (imperial) | 33.8 cm (13.3") |
| Weight (imperial) | 18.75 lb |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR qualified; EPEAT Gold; 85% efficient power supply |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse |
| Keyboard type | HP PS/2 Standard Keyboard |
Multimedia
| Specification | Value |
|---|---|
| Multimedia | Integrated High Definition audio with ADI1884 codec (all ports are stereo) |
Features
| Specification | Value |
|---|---|
| Manageability features | RAID 1 Mirrored Array. Energy efficient, space saving design. Long, stable lifecycle. |
| Security management description | Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Smartcard Keyboard |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock, Solenoid Hood Lock / Sensor, HP 2008 (SFF) Wall Mount/Security Sleeve |
| Drive bays | 1 external 5.25 inch, 1 external 3.5 inch 1 internal 3.5 inch |
