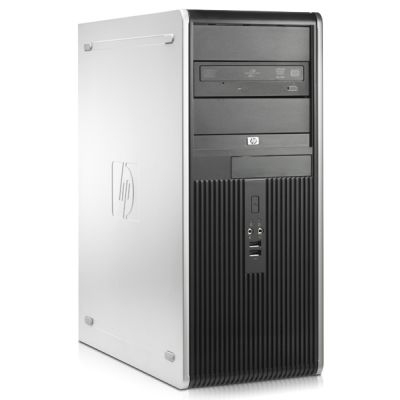

HP Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/250G DVD+/-RW WVST Bus Convertible Minitower PC
Model Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/250G DVD+/-RW WVST Bus Convertible Minitower PCPart no. KB928ET#MLKEAN 883585782413
125 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage250 GB
- TypePC
- Weight11.8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 250 GB
- Type
- PC
- Weight
- 11.8 kg
- Processor manufacturer
- Intel
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/250G DVD+/-RW WVST Bus Convertible Minitower PC
- Part numbers
- KB928ET#MLK, KB928ET
- EAN / UPC
- 883585782413, 883585782116, 883585782369, 883585931620
- Also known as
- HP Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/250G DVD+/-RW WVST Bus Convertible Minitower PC Intel® Core™2 Duo 2 GB DDR2-SDRAM 250 GB
Specifications
125 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6750 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.66 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E6000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 8 |
| Stepping | G0 |
| ECC supported by processor | No |
| Processor technology | Intel vPro |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | SATA 3.0Gb/s NCQ SMART VI |
| Disk subsystem controller | SATA 3.0Gb/s |
| Diskette drive | Optional |
| Storage drive type | 250 GB |
Graphics
| Specification | Value |
|---|---|
| Video card features | 3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color |
| Video adapter, bus | PCI Express x16 |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Modem type | No |
| Networking features | Integrated Intel 82566DM Gigabit Network Connection |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| S/PDIF out port | No |
| TV-out | No |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
| Audio input | 1 |
| I/O ports | Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
| Expansion slots | 3 full-height PCI, 1 full-height PCI Express x16, 2 full-height PCI Express x1 |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (80% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 6.0 A; Rated Input Current 80 Plu |
| Power consumption (typical) | 365 W |
| Power management | Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 6.0 A; Rated Input Current 80 Plus: 5.0 A; Current Leakage (NFPA 99): < 450 µA; System Heat Dissipation: Typical 222 btu/hr (56 |
Design
| Specification | Value |
|---|---|
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Applications supported | Windows Vista Premium ready |
| Bundled software | On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP OpenView Configuration Management Solutions Agent, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Client Foundation Suite (HP Client Manager, HP Systems |
| Driver LAN | Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 30784 |
| Processor code | SLA9V |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker |
| Audio included | Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 452 mm |
| Height | 447 mm |
| Weight | 11.8 kg |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse |
| Keyboard type | HP PS/2 |
Features
| Specification | Value |
|---|---|
| Security management description | Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock, Solenoid Hood Lock / Sensor |
| Drive bays | 3 external 5.25 inch, 1 external 3.5 inch 2 internal 3.5 inch |
| UNSPSC-code | 43211507 |
