-RW WVST Bus Small Form Factor PC

Model Compaq dc7800p Intel Core™2 Duo Processor E6550 1G/80G DVD+/-RW WVST Bus Small Form Factor PCPart no. GQ647AW#ABH

126 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
GraphicsIntel® GMA 3100
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Graphics: Intel® GMA 3100
Type: PC
OS: Windows Vista Business

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7800p Intel Core™2 Duo Processor E6550 1G/80G DVD+/-RW WVST Bus Small Form Factor PC
Part numbers: GQ647AW#ABH, GQ647AW#ABA1052, GQ647AW#AK6#*RF
Also known as: HP Compaq dc7800p Intel Core™2 Duo Processor E6550 1G/80G DVD+/-RW WVST Bus Small Form Factor PC Intel® Core™2 Duo 1 GB DDR2-SDRAM 80 GB Intel® GMA 3100 Windows

Specifications

126 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6550
Processor cores	2
Processor threads	2
Processor frequency	2.33 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	7
Stepping	G0
ECC supported by processor	No
Processor technology	Intel vPro

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD Super Multi
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Storage drive controller	SATA 3.0Gb/s NCQ SMART VI
Disk subsystem controller	SATA 3.0Gb/s
Diskette drive	Optional
Storage drive type	80 GB

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3100
Maximum graphics card memory	0.256 GB
Graphics card family	Intel
Video card features	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Modem type	No
Networking features	Gigabit Network

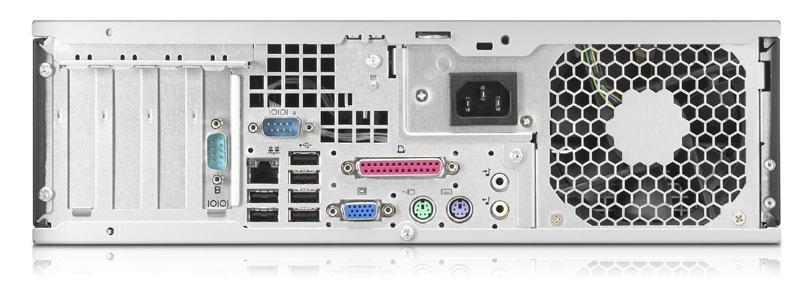

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports
Rear ports note	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 audio in; 1 audio out

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
Expansion slots	1 x PCI

Power

Specification	Value
Power requirements	90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz
Power consumption (typical)	240 W
Power management	Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50

Design

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
External drive bays	1 x 5.25", 1 x 3.5"
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows Vista Business
Applications supported	Windows Vista Premium ready
Compatible operating systems	Genuine Windows XP Home 32; Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64
Bundled software	On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP OpenView Configuration Management Solutions Agent, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Client Foundation Suite (HP Client Manager, HP Systems
Driver LAN	Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30783
Processor code	SLA9X
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD
Audio included	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width	337 mm
Depth	378 mm
Height	100 mm
Weight	8.5 kg

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2

Features

Specification	Value
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader

Other features

Specification	Value
Security features	Kensington Lock, Solenoid Hood Lock / Sensor
Drive bays	1 external 5.25 inch, 1 external 3.5 inch 1 internal 3.5 inch
