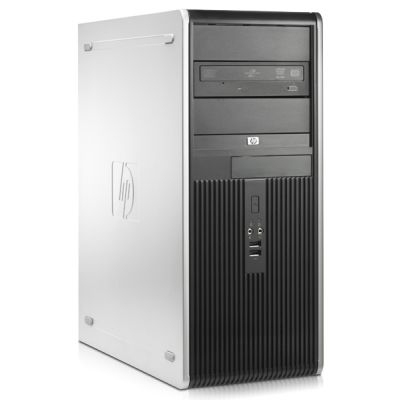

HP Compaq dc7800 convertible minitower pc + L2245W

Model Compaq dc7800 convertible minitower pc + L2245WPart no. BKB928ET

121 specifications

Display55.9 cm (22")
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 3100
TypePC

See all specifications

Overview

Display: 55.9 cm (22")
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 3100
Type: PC

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7800 convertible minitower pc + L2245W
Part number: BKB928ET
Also known as: HP Compaq dc7800 convertible minitower pc + L2245W Intel® Core™2 Duo E6750 2 GB DDR2-SDRAM 250 GB Intel® GMA 3100

Specifications

121 specifications in 21 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6750
Processor cores	2
Processor threads	2
Processor frequency	2.66 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	8
Stepping	G0
ECC supported by processor	No
Processor technology	Intel vPro

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory upgrade	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	No
Storage drive controller	SATA 3.0Gb/s NCQ SMART VI
Disk subsystem controller	SATA 3.0Gb/s

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3100
Maximum graphics card memory	0.256 GB
Video card features	3D/2D
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Modem type	No
Networking features	Intel 82566DM

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
eSATA ports quantity	0
S/PDIF out port	No
TV-out	No
Serial ports quantity	1
Parallel ports quantity	1
Audio input	1

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	3

Power

Specification	Value
Power consumption (typical)	365 W

Design

Specification	Value
Chassis type	Mini Tower
Country of origin	China
Upgrade type	Windows Vista

Software

Specification	Value
Applications supported	Windows Vista Premium ready
Driver LAN	Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000

Display

Specification	Value
Display included	Yes
Display diagonal	55.9 cm (22")

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30784
Processor code	SLA9V
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio included	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width	177 mm
Depth	452 mm
Height	447 mm
Weight	11.8 kg

Multimedia

Specification	Value
Built-in camera	No

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2

Features

Specification	Value
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader

Other features

Specification	Value
Security features	Kensington Lock, Solenoid Hood Lock / Sensor
Drive bays	3 external 5.25 inch, 1 external 3.5 inch 2 internal 3.5 inch
