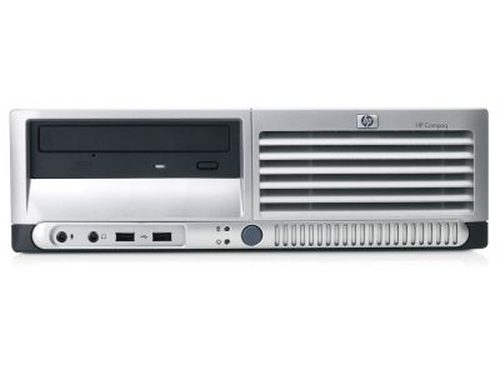

HP Compaq dc7700 Small Form Factor PC

Model Compaq dc7700 Small Form Factor PCPart no. RS841UCEAN 883585259700

128 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
TypePC
OSWindows XP Professional
Weight8.85 kg

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Type: PC
OS: Windows XP Professional
Weight: 8.85 kg

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7700 Small Form Factor PC
Part numbers: RS841UC, RG578AW#ABH, RG576AW#ABH, RG576AW, GE035ET, RR949UC +34 more
EAN / UPC: 883585259700, 882780749269, 882780749276, 882780749283 +56 more
Also known as: HP Compaq dc7700 Small Form Factor PC Intel® Core™2 Duo E6300 1 GB DDR2-SDRAM 80 GB Windows XP Professional SFF

Specifications

128 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6300
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	61.4 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	7
Stepping	R0
ECC supported by processor	No
Cache external	2048 KB

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory slots	4x DIMM
Memory clock speed	667 MHz
Memory upgrade	4 GB
Standard memory capacity	1 MB

Storage

Specification	Value
Total storage capacity	80 GB
HDD interface	SATA II
HDD speed	7200 RPM
Storage drive controller	Serial ATA I/II
Disk subsystem controller	Serial ATA 3.0 Gb/s
Diskette drive	Optional N

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB
Video card features	3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 3000 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 3D/2D Controller (Microsoft DirectX 9), VG
Video adapter, bus	PCI Express x16, PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Modem type	No
Networking features	Intel 82566DM Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 1 optional DVI graphics port (available via DVI ADD2 adapter), 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0, headphone and microphone Rear: 6 USB 2.0, 1 standard
Rear ports	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 audio in; 1 audio out; 1 RJ-45; 1 external VGA monitor

Expansion slots

Specification	Value
Expansion slots	2x Full-height PCI 1x Full-height PCI Express x1 1x Full-height PCI Express x16 2x Optional full-height PCI

Power

Specification	Value
Power supply type	240W power supply - active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	240 W

Design

Specification	Value
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
External drive bays	1x 5.25"; 1x 3.5"
Internal drive bays	1x 3.5"
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows XP Professional
Applications supported	Windows Vista Premium ready
Bundled software	HP Protect Tools Security Software Suite HP Client Manager Software HP Open View Configuration Management Altiris Deployment Solution Symantec Antivirus 10.0 (trial) HP Insight Diagnostics Software
Driver LAN	Microsoft 2000, Microsoft XP

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27248
Processor code	SLGW2
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio +Realtek ALC262 HDA Codec
Audio included	Integrated High Definition audio with Realtek ALC262 High Definition audio codec

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 35%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 95%

Weight & dimensions

Specification	Value
Width	337.8 mm
Depth	378.5 mm
Height	100.3 mm
Weight	8.85 kg
Size (imperial)	33.8 cm (13.3")
Weight (imperial)	17.18 lb

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse, USB optical scroll mouse or PS/2 optical scroll mouse
Keyboard type	2004 standard PS/2

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC262 codec (all ports are stereo)

Features

Specification	Value
Security management description	Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software

Other features

Specification	Value
Security features	Hood Cover Security Loop HP Desktop Security Lock 1.2 TPM Chip
Drive bays	1 internal 3.5 inch 1 external 5.25 inch, 1 external 3.5 inch
UNSPSC-code	43211507
