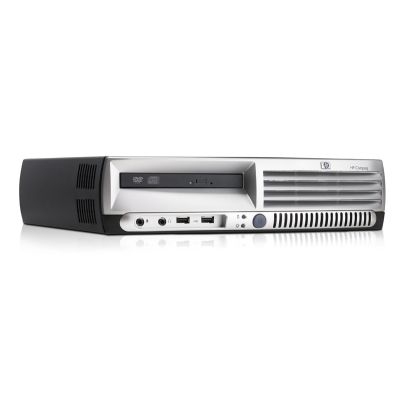

HP Compaq dc7700 PD 915 2x256M/80G CD-ROM WXP Pro Ultra Slim Desktop PC

Model Compaq dc7700 PD 915 2x256M/80G CD-ROM WXP Pro Ultra Slim Desktop PCPart no. RJ819AW#ABH

80 specifications

ProcessorIntel® Pentium® 4
Memory0.5 GB
Storage80 GB
TypePC
OSWindows XP Professional
Weight5.99 kg

See all specifications

Overview

Processor: Intel® Pentium® 4
Memory: 0.5 GB
Storage: 80 GB
Type: PC
OS: Windows XP Professional
Weight: 5.99 kg

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7700 PD 915 2x256M/80G CD-ROM WXP Pro Ultra Slim Desktop PC
Part number: RJ819AW#ABH
Also known as: HP Compaq dc7700 PD 915 2x256M/80G CD-ROM WXP Pro Ultra Slim Desktop PC Intel® Pentium® 4 0.5 GB DDR2-SDRAM 80 GB Windows XP Professional

Specifications

80 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® 4
Processor frequency	2.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Number of processors installed	1

Memory

Specification	Value
Internal memory	0.5 GB
Maximum internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory slots	3x DIMM
Memory clock speed	667 MHz
Memory upgrade	3 GB
Standard memory capacity	512 MB

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	CD-ROM
HDD interface	SATA II
HDD speed	7200 RPM
Storage drive controller	Serial ATA I/II (1.5/3.0 Gb/s)
Disk subsystem controller	Serial ATA 3.0 Gb/s
Diskette drive	No
Storage drive type	80 GB

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB
Video card features	3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 3000 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 3D/2D Controller (Microsoft DirectX 9), VG
Video adapter, bus	PCI Express x16, PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
CD read speed	48x

Network

Specification	Value
Modem type	No
Networking features	Intel 82566DM Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
I/O ports	Rear: 6 USB 2.0, 1 optional serial port, 1 optional parallel port, 1 optional DVI graphics port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0, headphone and microphone
Rear ports	6 USB 2.0; 2 PS/2; 1 audio in; 1 audio out; 1 RJ-45; 1 external VGA monitor
Rear ports note	Optional serial port (available vis adapter); Optional parallel port (available via adapter)

Expansion slots

Specification	Value
Expansion slots	2x PCI 1x Low-profile PCI Express x16

Power

Specification	Value
Power supply type	200W power supply - Active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	200 W

Design

Specification	Value
Chassis type	Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington
External drive bays	1x Slimline
Internal drive bays	1x 3.5"
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	HP Protect Tools Security Software Suite HP Client Manager Software HP Open View Configuration Management Altiris Deployment Solution Symantec Antivirus 10.0 (trial) HP Insight Diagnostics Software
Driver LAN	Microsoft 2000, Microsoft XP

Display

Specification	Value
Display included	No

Audio

Specification	Value
Audio system	High Definition Audio + Realtek 2-ch. ALC262 Codec
Audio included	Integrated High Definition audio with Realtek ALC262 High Definition audio codec

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 95%

Weight & dimensions

Specification	Value
Width	315 mm
Depth	334.8 mm
Height	74.9 mm
Weight	5.99 kg
Size (imperial)	31.5 cm (12.4")
Weight (imperial)	12.08 lb

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse, USB optical scroll mouse or PS/2 optical scroll mouse
Keyboard type	2004 standard PS/2

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC262 codec (all ports are stereo)

Features

Specification	Value
Security management description	Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software

Other features

Specification	Value
Security features	TPM 1.2 Hood Cover Security Loop
Drive bays	1 internal 3.5 inch 1 external Slimline
UNSPSC-code	43211507
