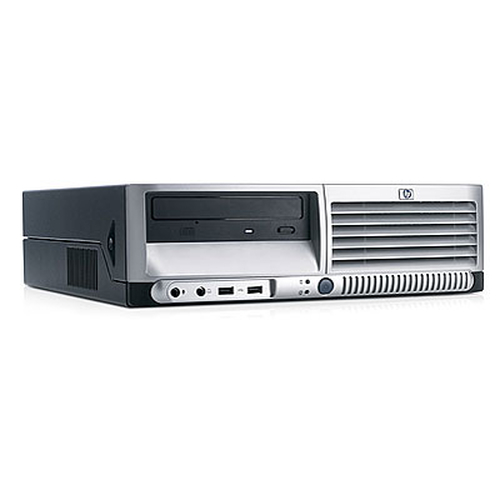

HP Compaq dc7600 P4 630 HT 2x256M/80G DVD-CDRW LAN WXP Pro Convertible Minitower PC
Model Compaq dc7600 P4 630 HT 2x256M/80G DVD-CDRW LAN WXP Pro Convertible Minitower PCPart no. AF845AW#ABH
97 specifications
- ProcessorIntel® Pentium® 4
- Memory0.5 GB
- TypePC
- OSWindows XP Professional
- Weight14.7 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Pentium® 4
- Memory
- 0.5 GB
- Type
- PC
- OS
- Windows XP Professional
- Weight
- 14.7 kg
- Processor manufacturer
- Intel
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7600 P4 630 HT 2x256M/80G DVD-CDRW LAN WXP Pro Convertible Minitower PC
- Part numbers
- AF845AW#ABH, AF845ET, AF845AW#ABUOB
- Also known as
- HP Compaq dc7600 P4 630 HT 2x256M/80G DVD-CDRW LAN WXP Pro Convertible Minitower PC Intel® Pentium® 4 0.5 GB DDR2-SDRAM Windows XP Professional
Specifications
97 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® 4 |
| Processor model | 630 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 600 Series supporting Hyper-Threading Technology |
| Processor codename | Prescott |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 66.6 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 169 M |
| Processing Die size | 135 mm² |
| CPU multiplier (bus/core ratio) | 15 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory upgrade | 4 GB |
Storage
| Specification | Value |
|---|---|
| HDD speed | 7200 RPM |
| Storage drive controller | Serial ATA 3.0 Gb/s |
| Disk subsystem controller | Serial ATA 3.0 Gb/s (except 40 GB configuration: Serial ATA 1.5 Gb/s) |
| Diskette drive | Optional |
| Storage drive type | 80 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.128 GB |
| Video card features | 3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 950 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85 Hz at 2048x1536. Varies with mode and configuration |
| Video adapter, bus | PCI Express x16 |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536. Varies with mode and configuration |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Acoustic power emissions | IDLE (Fixed disk drive spinning): LWAd = 4.2 Bels; FIXED DISK (Random write): LWAd = 4.4 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 4.8 Bels |
Network
| Specification | Value |
|---|---|
| Modem type | No |
| Networking features | Integrated Broadcom NetXtreme Gigabit Ethernet for HP |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x Parallel port, 1 x Serial port (optional 2nd port available), 1 x PS/2 keyboard, 1 x PS/2 mouse, 8 x USB 2.0 ports (2 front, 6 rear), 1 x VGA, 1 x RJ-45 Network, 5 x Audio ports (front: headphone and microphone jacks; rear: audio-in, audio-out/headphone, mic-in) |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 full-height PCI, 1 full height PCI Express x1, 1 full height PCI Express x16 (2 additional optional full-height PCI optional) |
Power
| Specification | Value |
|---|---|
| Power requirements | 90 – 264 / 100 – 240 VAC, 50/60 Hz, active PFC |
| Power consumption (typical) | 365 W |
Design
| Specification | Value |
|---|---|
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
| Compatible operating systems | Genuine Windows 2000 (Web Support), Genuine Windows XP Professional SP2, Genuine Windows XP Home SP2, FreeDOS, SuSE Linux 9.3 |
| Bundled software | Product Documentation on CD, Operating System CD, HP Restore CD Microsoft Internet Explorer, Adobe Acrobat Reader, Roxio CinePlayer, Altiris Local Recovery, Computer Setup Utility, Diagnostics for Windows |
| Driver LAN | Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux 2.2, Linux 2.4 |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27478 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Integrated High Definition audio with Realtek 2 channel ALC260 codec |
| Audio included | Integrated High Definition audio with Realtek 2 channel ALC260 codec |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 452 mm |
| Height | 448 mm |
| Weight | 14.7 kg |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | 2-Button Scroll Mouse PS/2 |
| Keyboard type | 2004 standard PS/2 |
Features
| Specification | Value |
|---|---|
| Security management description | Embedded TPM1.2 with optional HP ProtectTools, Embedded Security software |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Cable Lock, Hood Cover Security Loop supported, HP Desktop Security Lock, Integrated 1.2 TPM chip (ProtectTools software optional) |
| Drive bays | 3 external 5.25 inch, 1 external 3.5 inch 2 internal 3.5 inch |
