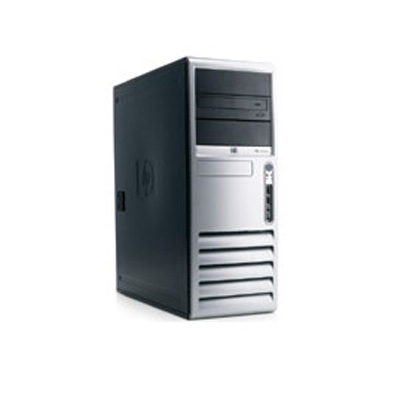

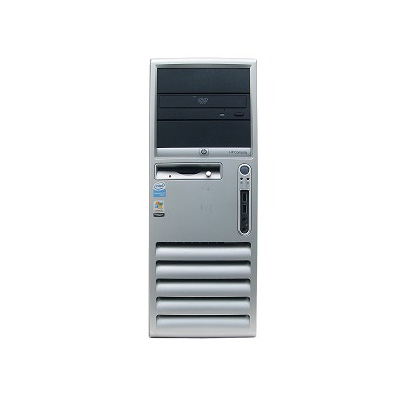

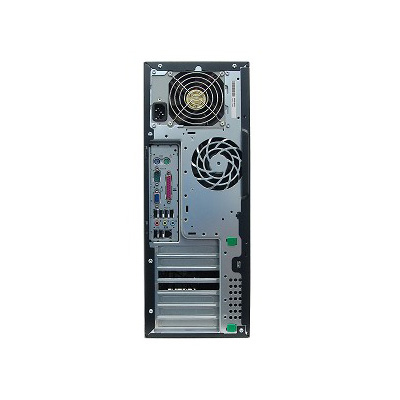

HP Compaq dc7600 MT

Model Compaq dc7600 MTPart no. EN096UA

82 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7600 MT
Part number: EN096UA
Also known as: HP Compaq dc7600 MT Intel® Pentium® 4 630 0.512 GB DDR2-SDRAM 80 GB HDD NVIDIA® Quadro® NVS 285 Windows XP Professional Mini Tower PC Silver

82 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® 4
Processor model	630
Processor cores	1
Processor threads	2
Processor frequency	3 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	90 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 4 600 Series supporting Hyper-Threading Technology
Processor codename	Prescott
Thermal Design Power (TDP)	84 W
Tcase	66.6 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	169 M
Processing Die size	135 mm²
CPU multiplier (bus/core ratio)	15

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® NVS 285
On-board graphics card model	Not available

Specification	Value
Product type	PC
Motherboard chipset	Intel® 945G

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Power supply	365 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows XP Professional
Operating system architecture	32-bit

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Processor ARK ID	27478
Processor package size	37.5 x 37.5 mm
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
