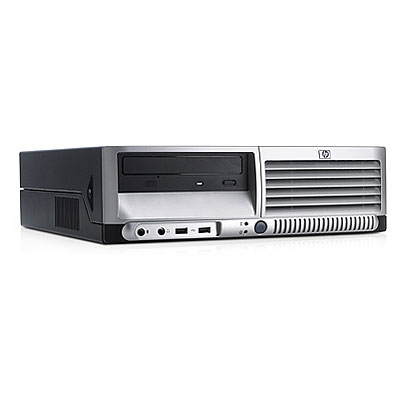

HP Compaq dc7100 Small Form Factor P4 530 HT 2x256M/40G CD-ROM LAN WXP Pro SP1 a

HP Compaq dc7100 Small Form Factor P4 530 HT 2x256M/40G CD-ROM LAN WXP Pro SP1 a

Model Compaq dc7100 Small Form Factor P4 530 HT 2x256M/40G CD-ROM LAN WXP Pro SP1 aPart no. PC922A#ABH

101 specifications
  • Processor530
  • Memory0.5 GB
  • TypePC
  • Weight8.9 kg
  • Processor manufacturerIntel
  • Optical drive typeCD-ROM
See all specifications

Overview

Processor
530
Memory
0.5 GB
Type
PC
Weight
8.9 kg
Processor manufacturer
Intel
Optical drive type
CD-ROM
Brand
HP
Model
Compaq dc7100 Small Form Factor P4 530 HT 2x256M/40G CD-ROM LAN WXP Pro SP1 a
Part numbers
PC922A#ABH, PC922A#1902, PC922A#1730, PC922A#ABA-CHASSIS
Also known as
HP Compaq dc7100 Small Form Factor P4 530 HT 2x256M/40G CD-ROM LAN WXP Pro SP1 a 0.5 GB PC

Specifications

101 specifications in 18 groups

Processor

Processor manufacturerIntel
Processor model530
Processor cores1
Processor threads1
Processor frequency1.73 GHz
Processor cache1 MB
Processor cache typeL2
Processor front side bus533 MHz
Bus typeFSB
FSB ParityNo
Processor lithography65 nm
Processor operating modes64-bit
Processor codenameMerom
Thermal Design Power (TDP)27 W
Tcase67.7 °C
Tjunction100 °C
Processor socketSocket AM2
Number of Processing Die Transistors291 M
Processing Die size143 mm²
CPU multiplier (bus/core ratio)14
Processor core voltage (AC)0.95 - 1.30 V
SteppingA1
ECC supported by processorNo

Memory

Internal memory0.5 GB
Maximum internal memory4 GB
Memory upgrade4 GB

Storage

Optical drive typeCD-ROM
HDD speed7200 RPM
Storage drive controllerSerial ATA/100
Disk subsystem controllerSerial ATA/100
Diskette drive1.44 MB Floppy Diskette Drive, Zip 250 for 3.5" drive bay, Zip 250 for 5.25" drive bay N

Graphics

Maximum graphics card memory0.064 GB
Video card features3D/2D Controller: Microsoft DirectX 9 based with support for Pixel Shader 2.0, 4:1 anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric textures, double-sided stencil buffers, and 4 pixel pipes; integrated VGA Controller; integrate
Video adapter, busPCI With the GV chipset, the integrated graphics is always enabled. Plugging in the PCI card does not disable it and does not require the integrated graphics to be re-enabled
Video card resolutionMaximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Performance

Product typePC
Motherboard chipsetIntel® 915G Express
Acoustic power emissionsIDLE (Fixed disk drive spinning): LWAd = 3.6 Bels; FIXED DISK (Random write): LWAd = 4.2 Bels; FILE COPY (HD to Floppy Disk): LWAd = 4.3 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 5.5 Bels

Network

Modem typeNo
Networking featuresIntegrated Broadcom NetXtreme Gigabit Ethernet Integrated Broadcom NetXtreme Gigabit Ethernet NIC

Ports & interfaces

I/O portsRear I/O: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front I/O: 2 USB 2.0, headphone and microphone

Expansion slots

Expansion slots2 low profile PCI, 1 low profile PCI Express x1, 1 low profile PCI Express x16 (2 full-height PCI available via optional riser card), (Note: with riser card option, express x1 and x16 slots are not supported)

Power

Power supply type240W Active PFC
Power requirements100 – 127 / 200 – 240 VAC, 50/60 Hz, 5A / 2.5A Operating Voltage Range: 90 – 132 / 180 – 264 VAC; Rated Voltage Range: 100 – 127 / 200 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 5A / 2.5A; Heat Dissipation: Typical 256 btu/hr (65 kg-ca
Power consumption (typical)240 W
Power managementOperating Voltage Range: 90 – 132 / 180 – 264 VAC; Rated Voltage Range: 100 – 127 / 200 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 5A / 2.5A; Heat Dissipation: Typical 256 btu/hr (65 kg-cal/

Design

Country of originChina

Software

Bundled softwareMaple Restore CD, Altiris Local Recovery back up software pre loaded and Norton Antivirus 2004 on selected models In some models only: Microsoft Office 2003 Small Business Edition, Microsoft Office 2003 Basic, WinDVD, WinDVD Creator, Roxio Easy CD & DVD Creator, Dantz Retrospect Backup Express (used
Driver LANMicrosoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux 2.2, Linux 2.4 Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux 2.2, Linux 2.4

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyNo
Execute Disable BitYes
Idle StatesNo
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyNo
Intel Enhanced Halt StateNo
Intel FDI TechnologyNo
Intel Fast Memory AccessNo
Intel Flex Memory AccessNo
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)No
Intel Virtualization Technology (VT-x)No
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Wireless Display (Intel® WiDi)No
Processor ARK ID29733
Processor codeSLA2G
Processor package size35 mm
Thermal Monitoring TechnologiesNo
Intel® Turbo Boost TechnologyNo
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Quick Sync Video TechnologyNo
Intel® My WiFi Technology (Intel® MWT)No
Intel® Anti-Theft Technology (Intel® AT)No
Conflict-Free processorNo

Audio

Audio systemIntegrated Intel Audio with Premier Internal Speaker Chipset integrated
Audio includedIntegrated Intel Audio with Premier Internal Speaker

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Relative humidity10 - 90%
Non-operating relative humidity (non-condensing)5 - 90%

Weight & dimensions

Width338 mm
Depth379 mm
Height100 mm
Weight8.9 kg

Keyboard

Pointing device2-Button Scroll Mouse PS/2 PS/2 or USB 2-button scroll or optical mouse
Keyboard type2004 standard PS/2 PS/2 or USB 2004 Standard Keyboard

Features

Security management descriptionSecurity cable with Kensington lock, universal chassis clamp lock, universal, Wall mount/security sleeve, security loop, Serial-Parallel-USB Enable/Disable, TPM security module, Solenoid and Hood sensor

Other features

Fault managementSMART Hard Drives, Fault & Pre-failure Notification; Memory Change Notification (Requires HP Client Manager Software); Thermal Notification (Requires HP Client Manager Software); Altiris Local Recovery; Surge Tolerant Full Ranging Power Supply; Ultra ATA
Configuration management descriptionInstantly Available PC (Suspend to RAM - S3); ROM Based F10 Setup; Remote System Installation via F12 (PXE)(Remote Boot from Server); System/Emergency ROM Flash; Recovery with Video; BIOS Smart Card Support; Auto Setup when New Hardware Installed; Serial
Drive bays1 internal 3.5" bay (1) 3.5" bay 1 external 3.5" bay, 1 external 5.25" bay
UNSPSC-code43211507
