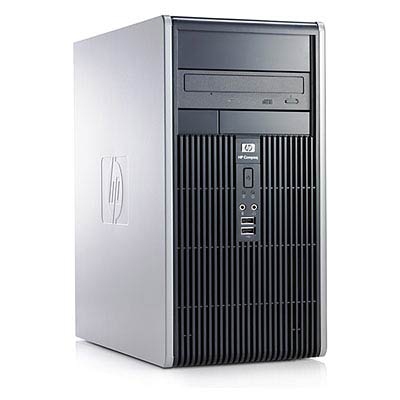

HP Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/160G DVD+/-RW WVST Bus Microtower PC
Model Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/160G DVD+/-RW WVST Bus Microtower PCPart no. AK819AW#ABA-B2EAN 883585772988
133 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 3100
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 3100
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/160G DVD+/-RW WVST Bus Microtower PC
- Part numbers
- AK819AW#ABA-B2, AK819AW, AK819AW#ABA-A1, AK819AW#ABA1071
- EAN / UPC
- 883585772988, 883585772681, 883585772698, 883585772704 +16 more
- Also known as
- HP Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/160G DVD+/-RW WVST Bus Microtower PC Intel® Core™2 Duo 2 GB DDR2-SDRAM 160 GB Intel® GMA 3100 Windows Vista
Specifications
133 specifications in 22 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E8400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E8000 Series |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| Stepping | E0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory clock speed | 800 MHz |
| Minimum RAM | 512 MB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | SATA 3.0Gb/s NCQ SMART IV |
| Disk subsystem controller | SATA 3.0Gb/s NCQ SMART IV |
| Diskette drive | Optional |
| Storage drive type | 160 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3100 |
| On-board graphics card model | Not available |
| Video card features | 3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 350 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color |
| Video adapter, bus | PCI Express x16 |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Acoustic power emissions | IDLE (Fixed disk drive spinning): LWAd = 3.8 Bels; FIXED DISK (Random write): LWAd = 3.9 Bels |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Modem type | 2006 Agere PCI 56K International SoftModem (full height) |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| I/O ports | Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports |
| Rear ports note | 6 USB 2.0; 2 PS/2; 1 serial; 1 serial (optional 2nd); 1 parallel (optional); 1 external VGA monitor; 1 audio out; 1 audio in; 1 RJ-45 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| Expansion slots | 1 full-height PCI, 1 full-height PCI Express x16, 2 full-height PCI Express x1 |
Power
| Specification | Value |
|---|---|
| Power supply type | 300W 80 PLUS power supply - active PFC |
| Power requirements | Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC optional (External 80% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 2.5 A; |
| Power supply | 300 W |
| Power consumption (typical) | 300 W |
| Power management | Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 2.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation 80 Plus: Typical 315 btu/hr (79 kg-cal/hr), Maximum |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Compatible operating systems | FreeDOS |
| Bundled software | HP ProtectTools Security Solutions, HP Backup & Recovery Manager, HP Insight Diagnostics, HP Software Agent, HP Total Care Advisor, HP Client Configuration Manager, HP Client Manager for Altiris, HP SoftPaq Download Manager, HP Client Catalog for Microsoft SMS, HP Systems Software Manager, Computer |
| Driver LAN | Microsoft Windows XP, Microsoft Windows Vista, FreeDos, Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33910 |
| Processor code | SLB9J |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Audio included | Integrated High Definition audio with ADI1884 codec, microphone and headphone front ports, line-out and line-in rear ports, multistreaming capable, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 428 mm |
| Height | 377 mm |
| Weight | 8.9 kg |
| Weight (imperial) | 19.75 lb |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR qualified; EPEAT Gold; 80% efficient power supply |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse |
| Keyboard type | HP PS/2 Standard Keyboard |
Multimedia
| Specification | Value |
|---|---|
| Multimedia | Integrated High Definition audio with Realtek 2 channel ALC260 codec (all ports are stereo) |
Features
| Specification | Value |
|---|---|
| Security management description | Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock |
| Drive bays | 2 external 5.25 inch, 1 external 3.5 inch 2 internal 3.5 inch |
| UNSPSC-code | 44103105 |
