HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC
Model Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PCPart no. RL173AW#ABH
102 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage80 GB
- GraphicsIntel® GMA 3000
- TypePC
- OSWindows XP Professional
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 3000
- Type
- PC
- OS
- Windows XP Professional
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC
- Part numbers
- RL173AW#ABH, RL173AW#ABD#*TOP1
- Also known as
- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC Intel® Core™2 Duo 1 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Window
Specifications
102 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | R0 |
| ECC supported by processor | No |
| Cache external | 2048 KB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory clock speed | 667 MHz |
| Memory upgrade | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| Optical drive type | DVD-ROM |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | SATA 3.0 Gb/s |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 3000 |
| Maximum graphics card memory | 0.256 GB |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel 963Q Express |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| Expansion slots | 2x PCI 1x SDVO/ ADD2 |
Power
| Specification | Value |
|---|---|
| Power supply type | 240W |
| Power requirements | 90 – 264 VAC |
| Power consumption (typical) | 240 W |
Design
| Specification | Value |
|---|---|
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27248 |
| Processor code | SLGW2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 397.3 mm |
| Depth | 392.9 mm |
| Height | 114.3 mm |
| Weight | 8.35 kg |
What people say
Reviews & ratings
HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC
No reviews yet
Be the first to tell others how HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC
All pcs/workstations comparisons- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsHP xw4400 + 2xL1955 Flat Panel MonitorCompare specs
- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsHP Pavilion a1510.be Desktop PCCompare specs
- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsHP xw6400 (2) x Intel® Xeon® DC 2.0GHz 2GB/80GB DVD-ROM WXP Pro WorkstationCompare specs
- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsHP xw6200 Intel® Xeon®Compare specs

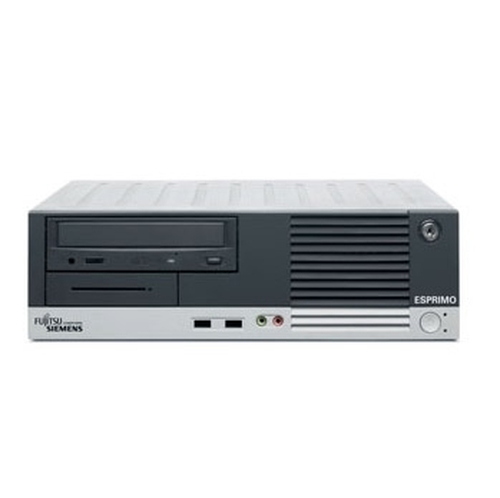

- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsFujitsu ESPRIMO E5710Compare specs

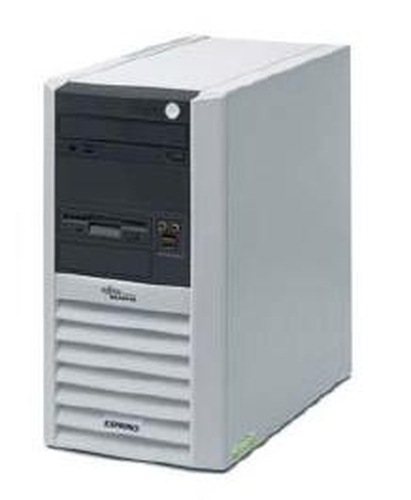

- HP Compaq dc5700 Intel Core™2 Duo Processor E6300 2X512M/80G DVD-ROM WXP Pro Small Form Factor PC vsFujitsu ESPRIMO P5916Compare specs
