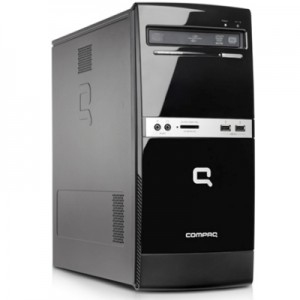

HP Compaq 500B

Model Compaq 500BPart no. WP560LT#ABM +TV TUN

107 specifications

ProcessorIntel® Pentium®
Memory2 GB
Storage320 GB
GraphicsNVIDIA GeForce 6150 SE
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 2 GB
Storage: 320 GB
Graphics: NVIDIA GeForce 6150 SE
Type: PC
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Compaq 500B
Part number: WP560LT#ABM +TV TUN
Also known as: HP Compaq 500B Intel® Pentium® E5400 2 GB DDR3-SDRAM 320 GB NVIDIA GeForce 6150 SE Windows 7 Professional Tower PC Black

Specifications

107 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5400
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	45, 65
Tcase	74.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	13.5
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD-RW
HDD interface	SATA
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA GeForce 6150 SE
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Wi-Fi	No
Networking features	Fast Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Design

Specification	Value
Chassis type	Tower
Product colour	Black
External drive bays	1x 5.25"
Internal drive bays	1x 3.5"
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	40478
Processor code	SLGH7
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	ALC662

Weight & dimensions

Specification	Value
Width	166 mm
Depth	428 mm
Height	384 mm
Weight	10.2 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u

Other features

Specification	Value
TV tuner integrated	Yes
