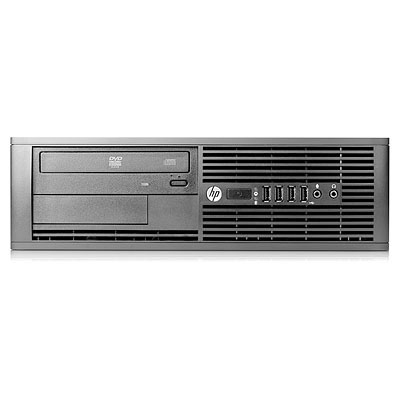

HP Compaq 4000 Pro Small Form Factor

Model Compaq 4000 Pro Small Form FactorPart no. XY090ESEAN 886111503308

112 specifications

ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsIntel® GMA 4500
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Intel® GMA 4500
Type: PC
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Compaq 4000 Pro Small Form Factor
Part number: XY090ES
EAN / UPC: 886111503308
Also known as: HP Compaq Pro Compaq 4000 Pro Small Form Factor Intel® Pentium® E5800 4 GB DDR3-SDRAM 500 GB HDD Intel® GMA 4500 Windows 7 Professional SFF PC Black

Specifications

112 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5800
Processor cores	2
Processor threads	2
Processor frequency	3.2 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	16
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
Total HDDs capacity	500 GB
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 4500
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel B43 Express

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking topology	10,100,1000
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Modem (RJ-11) ports	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	240 W

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42802
Processor code	SLGTG
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	338 mm
Depth	378.5 mm
Height	100 mm
Weight	7.6 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Multimedia

Specification	Value
Built-in camera	No

Other features

Specification	Value
TV tuner integrated	No
