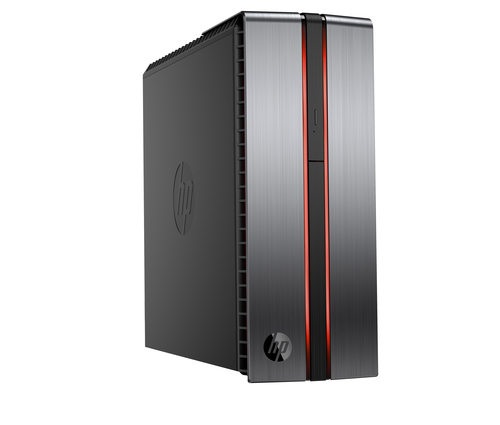

ENVY Phoenix 860-009na Intel® Core™ i7 i7-6700K

32 GB DDR4-SDRAM 3.25 TB HDD+SSD NVIDIA® GeForce® GTX 980 Ti Windows 10 Home Desktop PC Black, Brushed steel,

Model 860-009naPart no. N8X67EAEAN 889894577450

151 specifications

ProcessorIntel® Core™ i7
Memory32 GB
Storage3.25 TB
GraphicsNVIDIA® GeForce® GTX 980 Ti
SpeedWi-Fi 5 (802.11ac)
TypePC

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 3.25 TB
Graphics: NVIDIA® GeForce® GTX 980 Ti
Speed: Wi-Fi 5 (802.11ac)
Type: PC

Brand: HP
Category: PCs/Workstations
Model: 860-009na
Part number: N8X67EA
EAN / UPC: 889894577450
Also known as: HP ENVY Phoenix 860-009na Intel® Core™ i7 i7-6700K 32 GB DDR4-SDRAM 3.25 TB HDD+SSD NVIDIA® GeForce® GTX 980 Ti Windows 10 Home Desktop PC Black, Brushed steel,

Specifications

151 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700K
Processor cores	4
Processor threads	8
Processor boost frequency	4.2 GHz
Processor frequency	4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI2
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	91 W
Tcase	64 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1600,2133 MHz
Memory bandwidth supported by processor (max)	34.2 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	4 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	3.25 TB
Optical drive type	DVD Super Multi
Storage media	HDD+SSD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	3 TB
HDD interface	SATA
HDD speed	5400 RPM
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 980 Ti
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4
Graphics card DVI-I ports quantity	1
Graphics card DisplayPorts quantity	1
Graphics card HDMI ports quantity	1

Performance

Specification	Value
Product type	PC
Audio output channels	5.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	No

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	500 W
Power supply input voltage	100 - 240 V

Design

Specification	Value
Chassis type	Desktop
Placement supported	Vertical
Product colour	Black, Brushed steel, Red
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Fast Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88195
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
