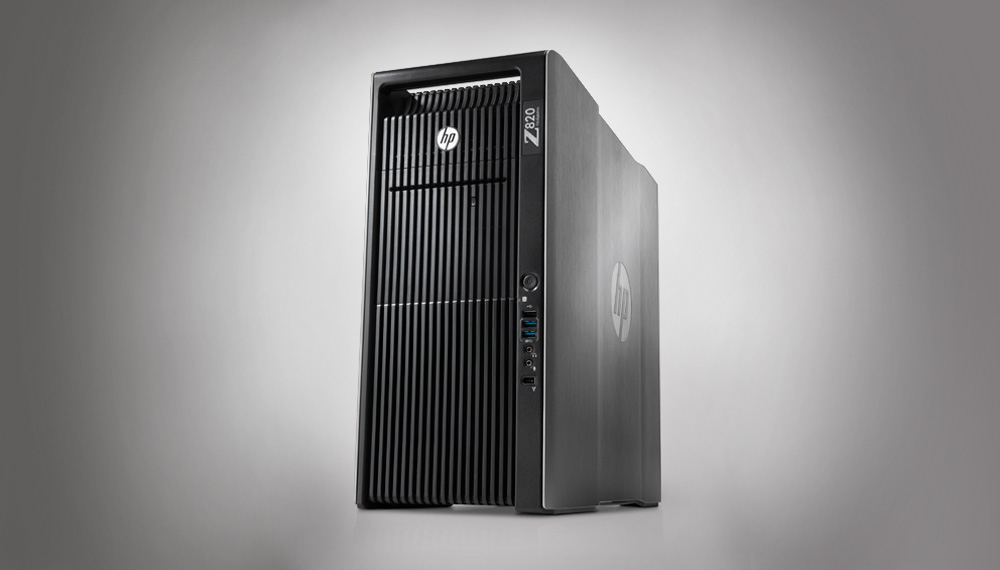

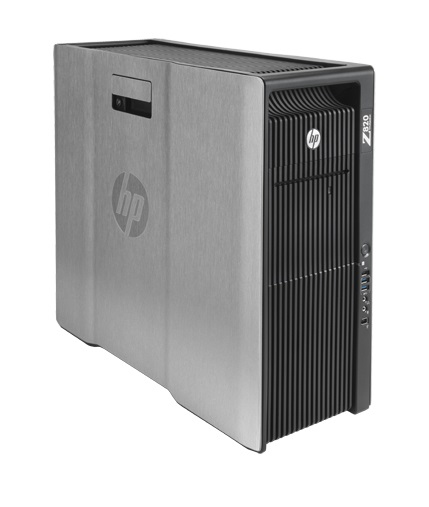

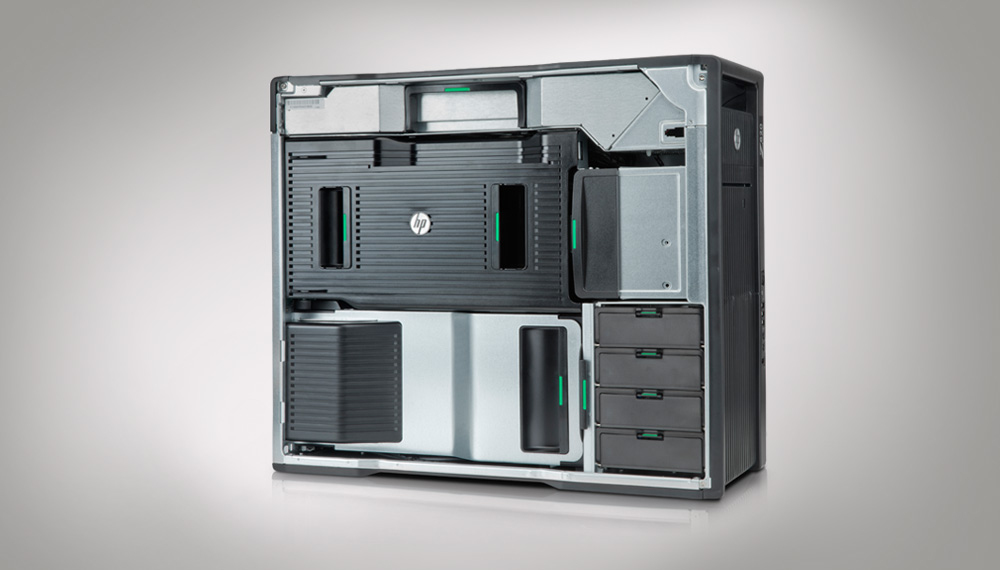

HP 820 Intel® Xeon® E5 Family E5-2643

32 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workstation Black

Model 820Part no. F1L40UT ABAEAN 886112971106

139 specifications

ProcessorIntel® Xeon® E5 Family
Memory32 GB
Storage1 TB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 32 GB
Storage: 1 TB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: 820
Part numbers: F1L40UT ABA, WM443EA, WM441EA, WM464EA, WM456EA, F1L43UT ABA +34 more
EAN / UPC: 886112971106, 886112975913, 886112975920, 886112975937 +56 more
Also known as: HP 820 Intel® Xeon® E5 Family E5-2643 32 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workstation Black

Specifications

139 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2643
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	3.3 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	73 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	2
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	35
Stepping	M1
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	512 GB
Internal memory type	DDR3-SDRAM
Memory slots	16x DIMM
Memory clock speed	1600 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDXC, SDHC

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Optical drive

Specification	Value
Optical drives quantity	1
LightScribe	No

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Wi-Fi standards	Not supported

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	No
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2
S/PDIF out port	No
DC-in jack	No
SmartCard slot	No
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x4 (Gen 2.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	3
PCI slots	1

Power

Specification	Value
Power supply	1125 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	3
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	64587
Processor package size	52.5 x 45.0 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	203 mm
Depth	525 mm
Height	444 mm
Weight	19.5 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	No
