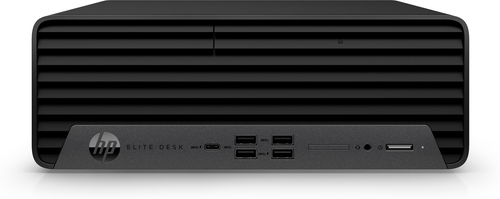

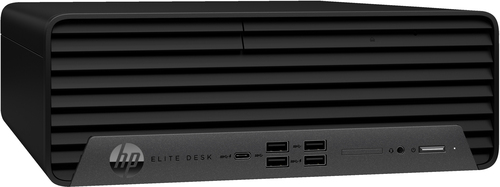

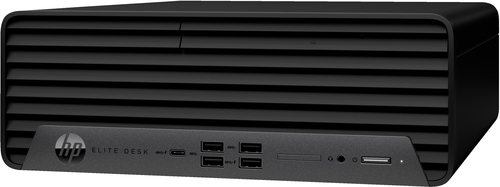

800 G9 SFF
Model 800 G9 SFFPart no. 5L2W9ES
84 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 800 G9 SFF
- Part number
- 5L2W9ES
- Also known as
- HP Elite 800 G9 SFF Intel® Core™ i7 i7-12700 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Desktop Mini PC Black
Specifications
84 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 180 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 2.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Premium |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Placement supported | Horizontal/Vertical |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Introduction year | 2023 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3252 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 175 mm |
| Height | 34 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 498 mm |
| Package depth | 132 mm |
| Package height | 235 mm |
| Package weight | 2.95 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
