800 G6 Wolf Pro
Model 800 G6 Wolf ProPart no. 4M3K1EAEAN 196068993191
111 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 800 G6 Wolf Pro
- Part numbers
- 4M3K1EA, 4M3J8EA, 4M3J9EA, 4M3K0EA
- EAN / UPC
- 196068993191, 196068992675, 196068992682, 196068992767
- Also known as
- HP EliteDesk 800 G6 Desktop Mini PC Wolf Pro Security Edition
Specifications
111 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10500T |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.7 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express, NVMe |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Premium |
| Motherboard chipset | Intel Q470 |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | No |
| DVI port | No |
| M.2 card slot (storage) | 2 |
| M.2 card slot (wireless) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 35 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Number of 2.5" bays | 1 |

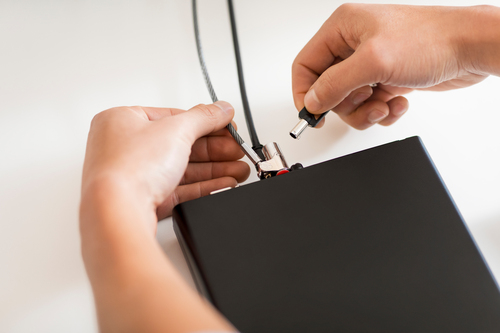

| Cable lock slot | Yes |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Bundled software | HP Wolf Pro Security Edition (3 years) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP JumpStart | Yes |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP Sure Sense; HP DriveLock and Automatic DriveLock; HP Sure Recover Gen3; HP Sure Run Gen3; HP Sure Start Gen6; HP BIOsphere Gen6; HP Client Security Manager Gen6 |
| HP Management tools | HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Conguration Management Gen 4; HP Image Assistant Gen 5 |
| HP Software provided | HP Noise Cancellation Software; HP Desktop Support Utilities |
| HP segment | Business |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 175 mm |
| Height | 34 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 498 mm |
| Package depth | 132 mm |
| Package height | 235 mm |
| Package weight | 2.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | Low halogen |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
