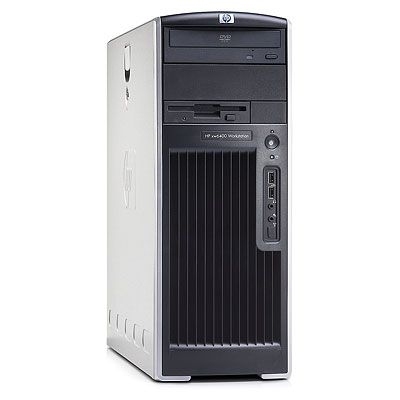

HP 6400 Intel® Xeon® 5000 Sequence 5140

4 GB DDR2-SDRAM 160 GB HDD NVIDIA® Quadro® NVS 285 Windows Vista Business Mini Tower Workstation Black

Model 6400Part no. RX288AW#ABH

102 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory4 GB
Storage160 GB
GraphicsNVIDIA® Quadro® NVS 285
TypeWorkstation
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 4 GB
Storage: 160 GB
Graphics: NVIDIA® Quadro® NVS 285
Type: Workstation
OS: Windows Vista Business

Brand: HP
Category: PCs/Workstations
Model: 6400
Part number: RX288AW#ABH
Also known as: HP 6400 Intel® Xeon® 5000 Sequence 5140 4 GB DDR2-SDRAM 160 GB HDD NVIDIA® Quadro® NVS 285 Windows Vista Business Mini Tower Workstation Black

Specifications

102 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	5140
Processor cores	2
Processor threads	2
Processor frequency	2.33 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	Yes
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5100 Series
Processor codename	Woodcrest
Processor system type	DP
Thermal Design Power (TDP)	65 W
Tcase	65 °C
Number of processors installed	2
Processor socket	LGA 771 (Socket J)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	7
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory clock speed	667 MHz
ECC	Yes

Storage

Specification	Value
Total storage capacity	160 GB
Optical drive type	DVD-ROM
Storage media	HDD
HDD interface	SATA
HDD speed	7200 RPM

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® Quadro® NVS 285

Performance

Specification	Value
Product type	Workstation

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	7
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
Expansion slots	2 PCI; 2 PCIe x8; 2 PCIe x16

Power

Specification	Value
Power supply	575 W

Design

Specification	Value
Chassis type	Mini Tower
Product colour	Black
Cooling type	Active
Country of origin	China

Software

Specification	Value
Operating system installed	Windows Vista Business
Operating system architecture	32-bit
Compatible operating systems	Genuine Windows Vista Business 32; Genuine Windows Vista Business 64; Genuine Windows XP 32-bit Edition SP2; Genuine Windows XP Professional x64 Edition; Red Hat Enterprise Linux 4; HP Linux Installation Kit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27217
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	165 mm
Depth	440 mm
Height	441 mm
Weight	15 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
