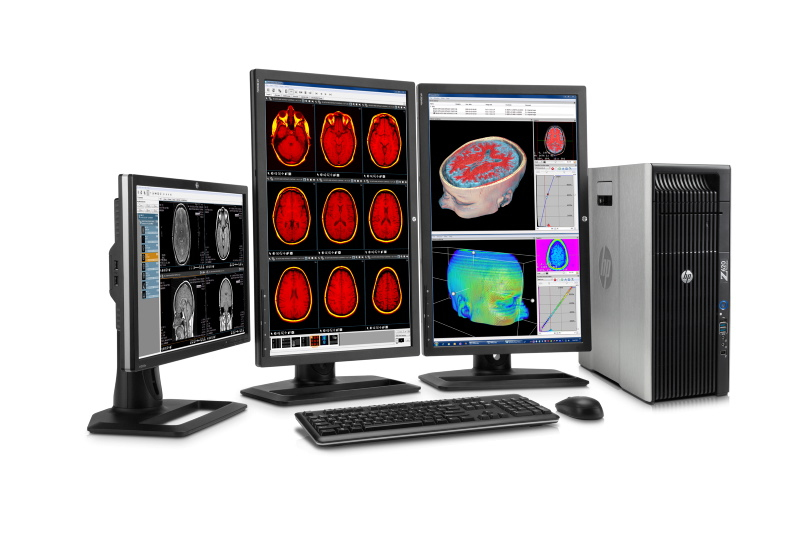

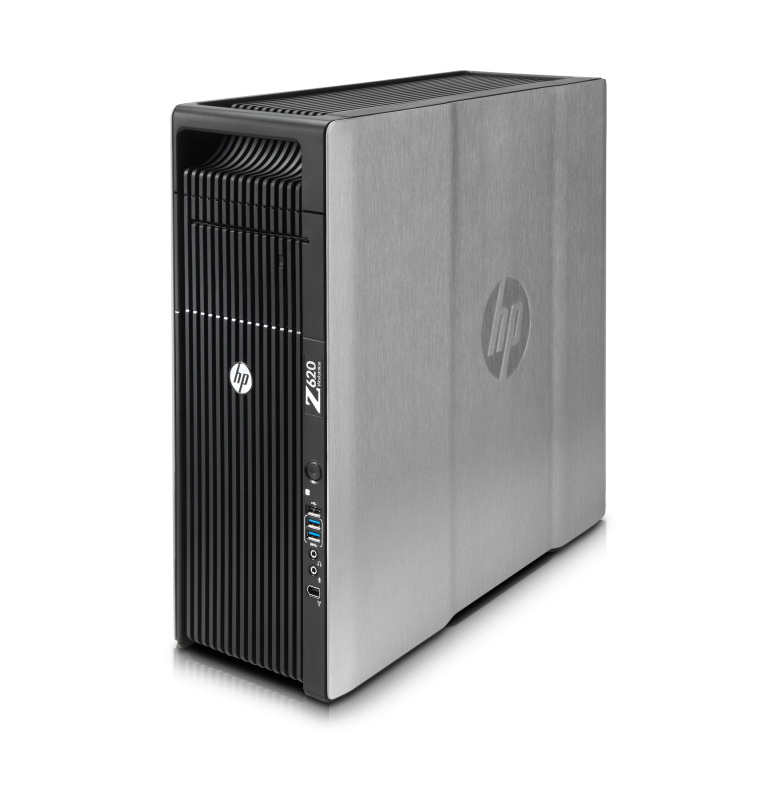

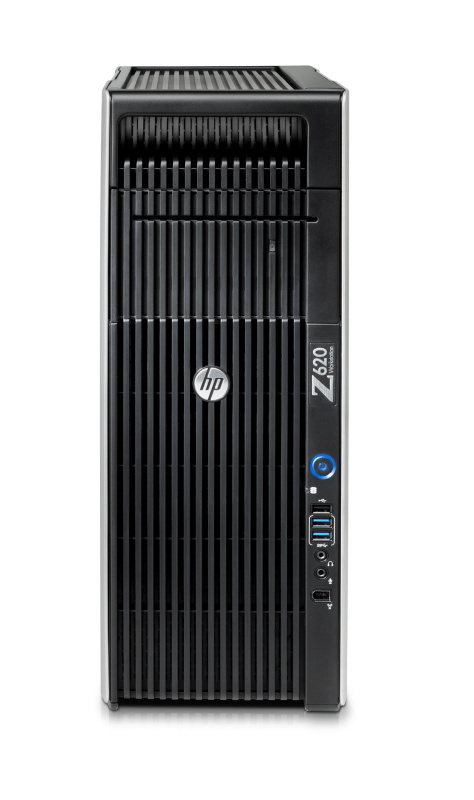

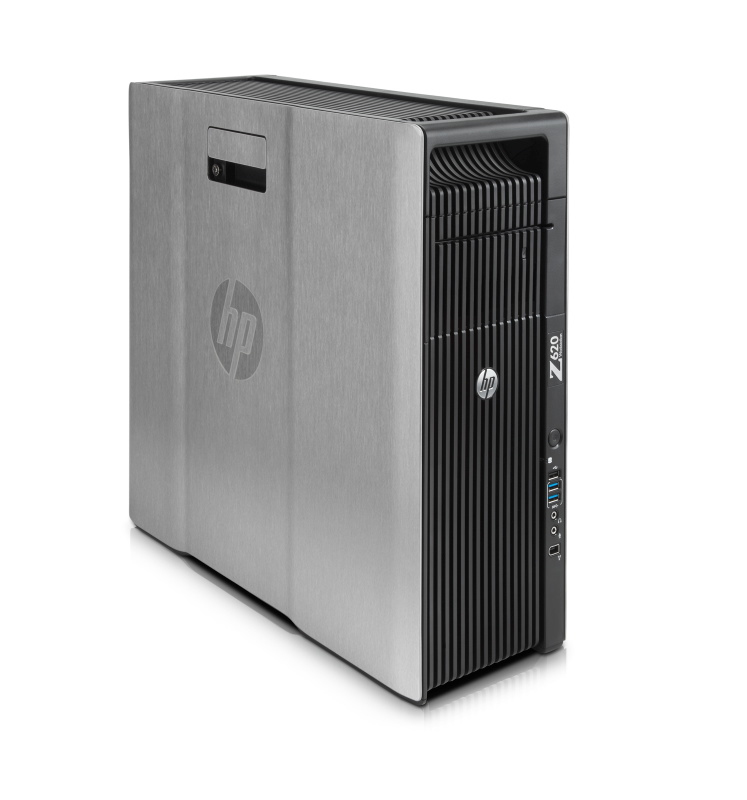

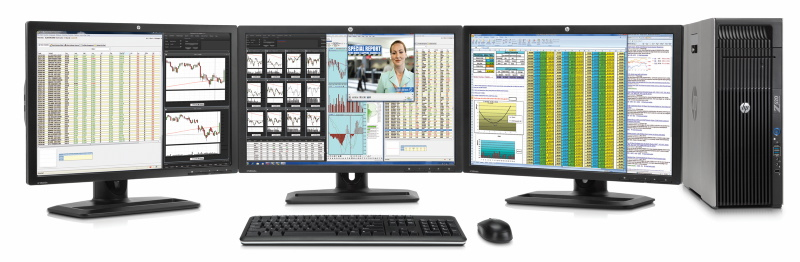

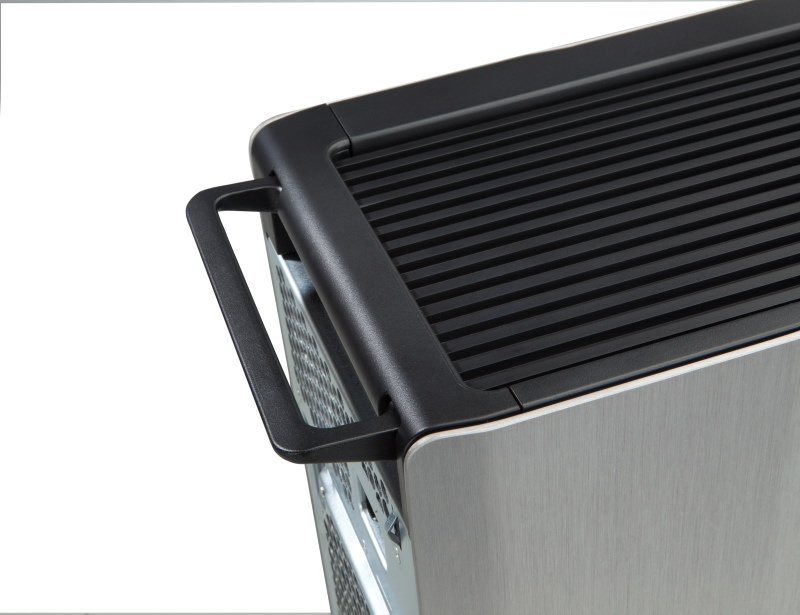

HP 620 Bundle

Model 620 BundlePart no. BWM619EA1-DK

156 specifications

Display61 cm (24")
ProcessorIntel® Xeon® E5 V2 Family
Memory16 GB
Storage240 GB
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Display: 61 cm (24")
Processor: Intel® Xeon® E5 V2 Family
Memory: 16 GB
Storage: 240 GB
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: 620 Bundle
Part numbers: BWM619EA1-DK, BWM619EA1-NO
Also known as: HP 620 Bundle Intel® Xeon® E5 V2 Family E5-2620V2 16 GB DDR3-SDRAM 240 GB SSD Windows 7 Professional Mini Tower Workstation Black

Specifications

156 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor cores	6
Processor threads	12
Processor boost frequency	2.6 GHz
Processor frequency	2.1 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	80 W
Tcase	71 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	96 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 4 GB
Memory slots	12x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	240 GB
Optical drive type	DVD Super Multi
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	240 GB
SSD interface	SATA
RAID support	Yes

Graphics

Specification	Value
On-board graphics card	No
Number of discrete graphics cards	1
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Optical drive

Specification	Value
Optical drives quantity	1
LightScribe	No

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wi-Fi standards	Not supported
Bluetooth	No

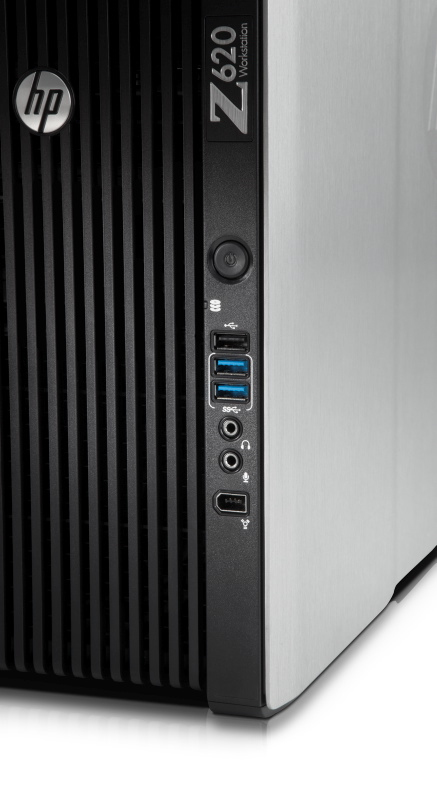

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	2
DC-in jack	Yes

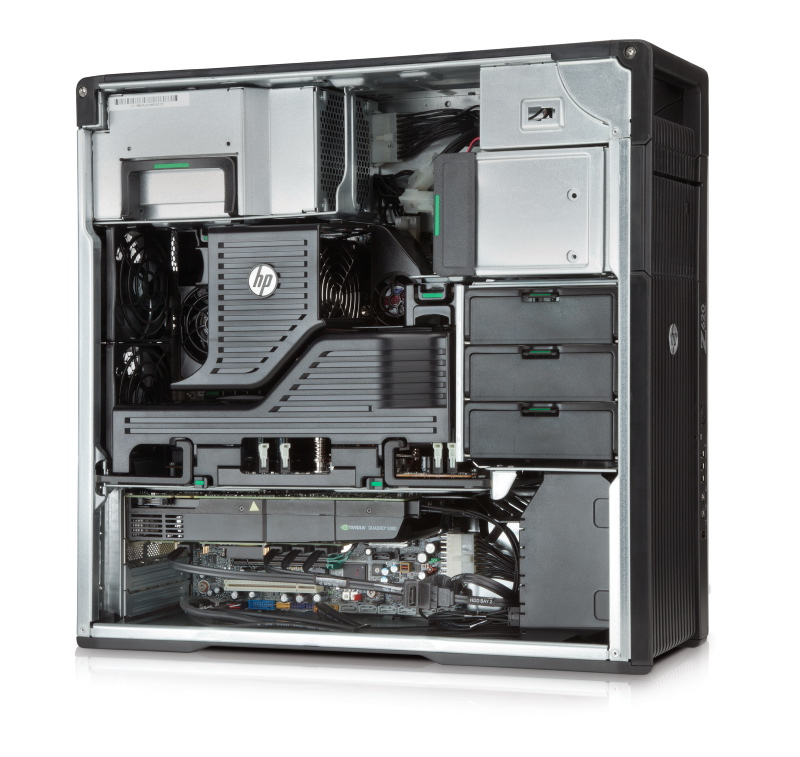

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI slots	1

Power

Specification	Value
Power supply	800 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Display

Specification	Value
Display included	Yes
Display diagonal	61 cm (24")
Display type	LED
Full HD	Yes
Native aspect ratio	16:9

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	75789
Processor package size	52.5 x 45 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC262

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	171.5 mm
Depth	464.8 mm
Height	444.5 mm
Weight	15.5 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
